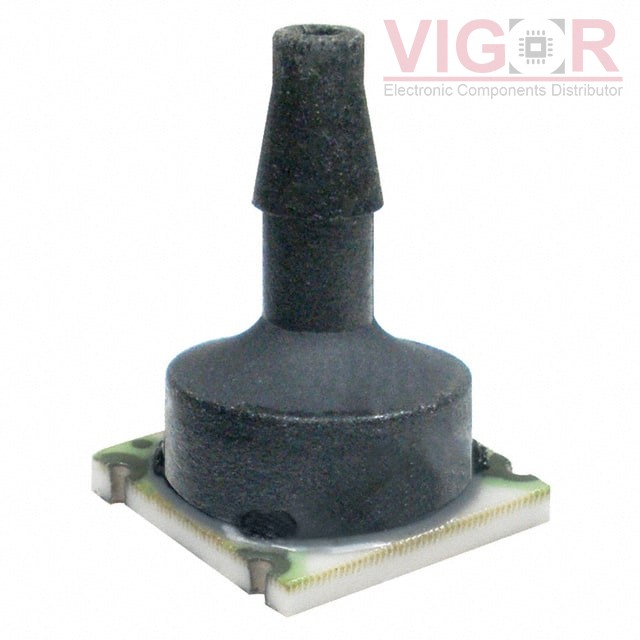

NBPLANS001PGUNV

Part No :: NBPLANS001PGUNV

Manufacturer: Honeywell Sensing and Productivity Solutions

VIGOR # :: 4771226

Description: BRD MNT PRESSURE SENSORS

Catalog: Pressure Sensors, Transducers

DataSheet: NBPLANS001PGUNV PDF

Country of origin: -

Date code: -

NBPLANS001PGUNV Specifications

Type	Description
Series:	NBP
Package:	Bulk
Part Status:	Active
Applications:	Board Mount
Pressure Type:	Vented Gauge
Operating Pressure:	1PSI (6.89kPa)
Output Type:	Wheatstone Bridge
Output:	0 mV ~ 32.5 mV (5V)
Accuracy:	±0.25%
Voltage - Supply:	1.8V ~ 12V
Port Size:	Male - 0.75" (1.91mm) Tube
Port Style:	Barbed
Features:	-
Termination Style:	SMD (SMT) Tab
Maximum Pressure:	10PSI (68.95kPa)
Operating Temperature:	-40°C ~ 125°C
Package / Case:	6-SMD, No Lead, Top Port
Supplier Device Package:	-
