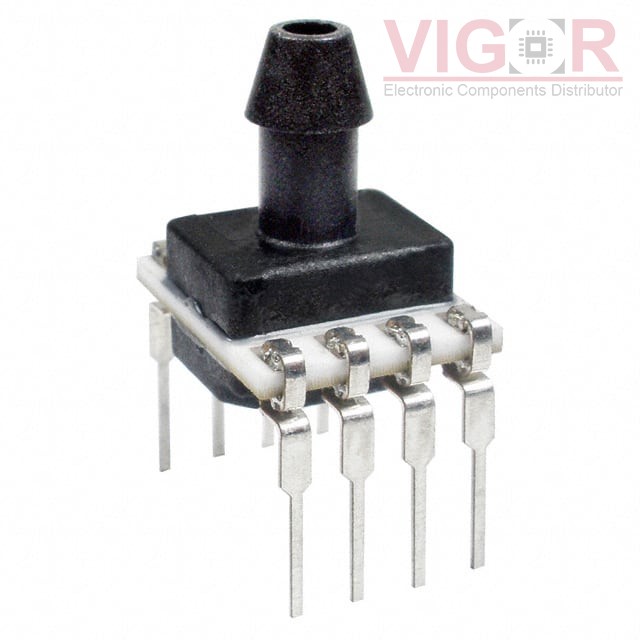

TSCDANN001PGUCV

Part No :: TSCDANN001PGUCV

Manufacturer: Honeywell Sensing and Productivity Solutions

VIGOR # :: 4772838

Description: BRD MNT PRESSURE SENSORS

Catalog: Pressure Sensors, Transducers

DataSheet: TSCDANN001PGUCV PDF

Country of origin: -

Date code: -

TSCDANN001PGUCV Specifications

Type	Description
Series:	TruStability® TSC
Package:	Bulk
Part Status:	Active
Applications:	Board Mount
Pressure Type:	Vented Gauge
Operating Pressure:	1PSI (6.89kPa)
Output Type:	Wheatstone Bridge
Output:	0 mV ~ 7.5 mV (5V)
Accuracy:	±0.2%
Voltage - Supply:	1.5V ~ 12V
Port Size:	Male - 0.19" (4.93mm) Tube
Port Style:	Barbed
Features:	Temperature Compensated
Termination Style:	PC Pin
Maximum Pressure:	12.7PSI (87.56kPa)
Operating Temperature:	-40°C ~ 85°C
Package / Case:	8-DIP (0.524", 13.30mm), Top Port
Supplier Device Package:	8-DIP
