PA0175-S

Part No :: PA0175-S

Manufacturer: Chip Quik, Inc.

VIGOR # :: 2880390

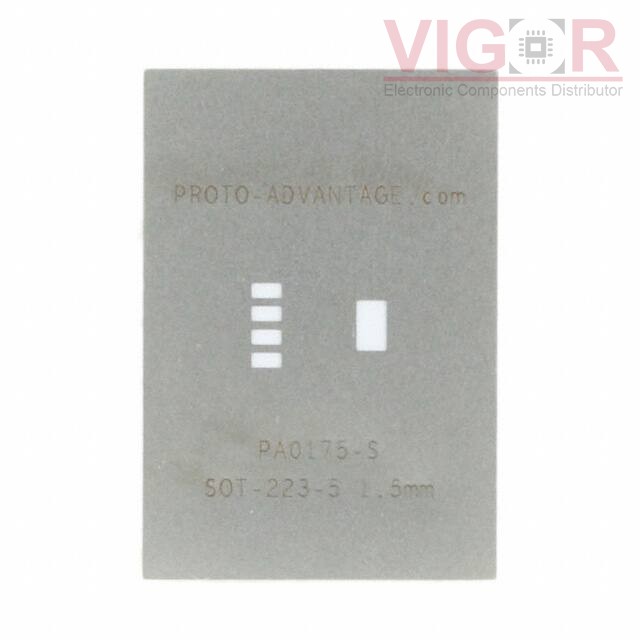

Description: SOT-223-5 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: PA0175-S PDF

Country of origin: -

Date code: -

PA0175-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	SOT/SC
Number of Positions:	4
Pitch:	0.059" (1.50mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.256" L x 0.140" W (6.50mm x 3.56mm)
Thermal Center Pad:	0.130" L x 0.079" W (3.30mm x 2.00mm)
Material:	Stainless Steel
