IPC0053-S

Part No :: IPC0053-S

Manufacturer: Chip Quik, Inc.

VIGOR # :: 2880403

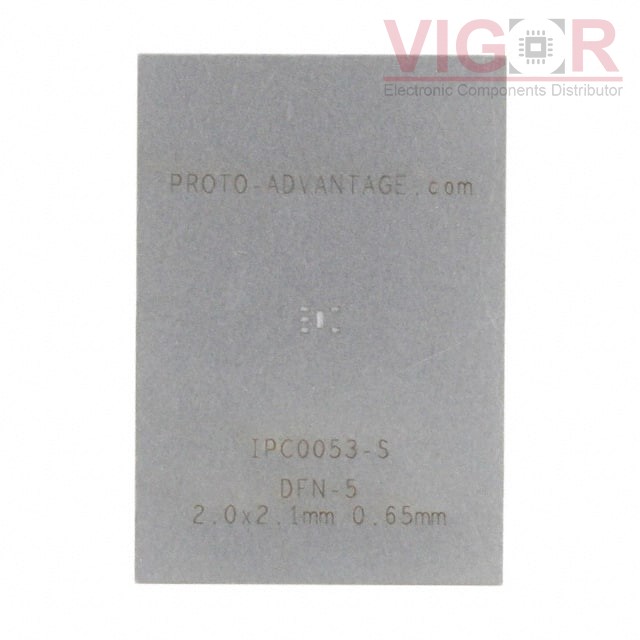

Description: DFN-5 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: IPC0053-S PDF

Country of origin: -

Date code: -

IPC0053-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	DFN
Number of Positions:	5
Pitch:	0.026" (0.65mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.083" L x 0.079" W (2.10mm x 2.00mm)
Thermal Center Pad:	0.053" L x 0.026" W (1.35mm x 0.65mm)
Material:	Stainless Steel
