IPC0159-S

Part No :: IPC0159-S

Manufacturer: Chip Quik, Inc.

VIGOR # :: 2880407

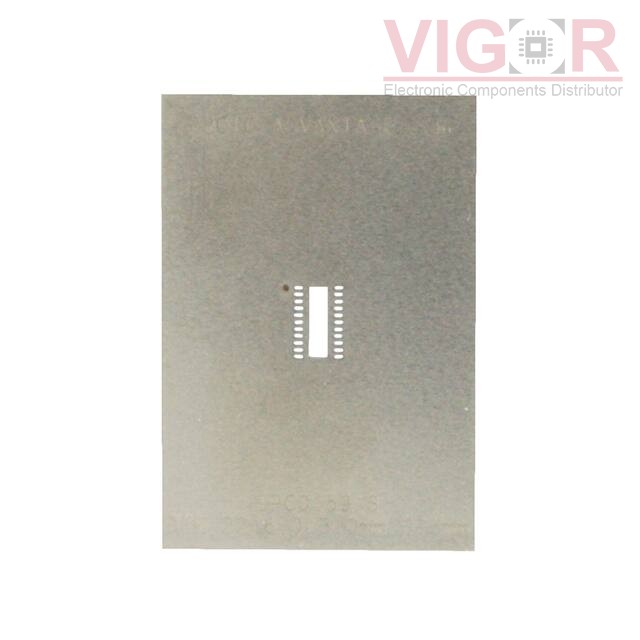

Description: DFN-22 (0.5MM PITCH, 6X3MM BODY)

Catalog: Solder Stencils, Templates

DataSheet: IPC0159-S PDF

Country of origin: -

Date code: -

IPC0159-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	DFN
Number of Positions:	22
Pitch:	0.020" (0.50mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.236" L x 0.118" W (6.00mm x 3.00mm)
Thermal Center Pad:	0.211" L x 0.065" W (5.35mm x 1.65mm)
Material:	Stainless Steel
