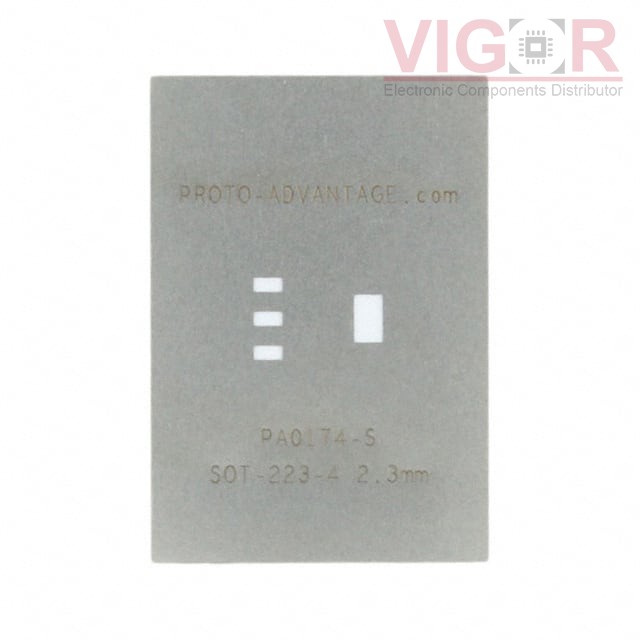

PA0174-S

Part No :: PA0174-S

Manufacturer: Chip Quik, Inc.

Description: SOT-223-4 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: PA0174-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of PA0174-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PA0174-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	SOT/SC
Number of Positions:	3
Pitch:	0.091" (2.30mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.256" L x 0.140" W (6.50mm x 3.56mm)
Thermal Center Pad:	0.130" L x 0.079" W (3.30mm x 2.00mm)
Material:	Stainless Steel
