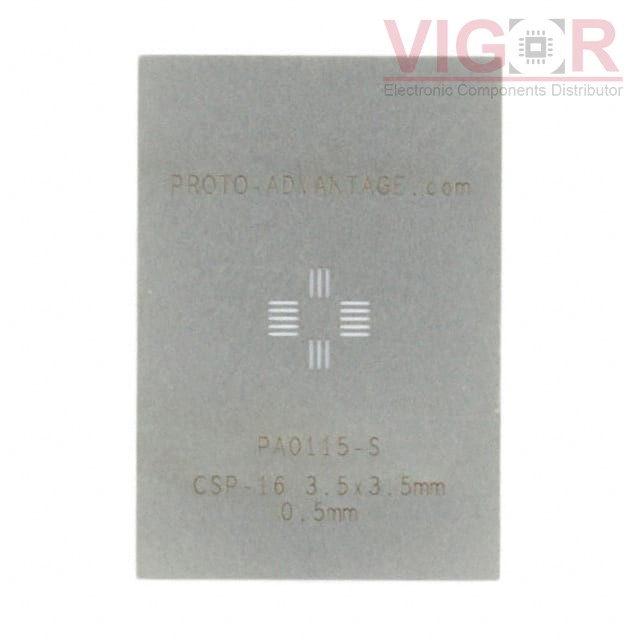

PA0115-S

Part No :: PA0115-S

Manufacturer: Chip Quik, Inc.

Description: CSP-16 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: PA0115-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of PA0115-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PA0115-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	CSP
Number of Positions:	16
Pitch:	0.020" (0.50mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.138" L x 0.138" W (3.50mm x 3.50mm)
Thermal Center Pad:	-
Material:	Stainless Steel

Please confirm the specifications of the products when ordering.
