PA0178-S

Part No :: PA0178-S

Manufacturer: Chip Quik, Inc.

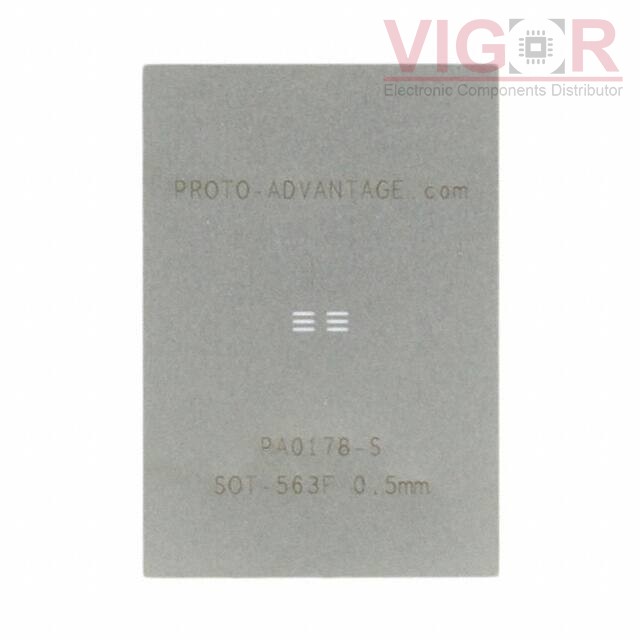

Description: SOT-563F STENCIL

Catalog: Solder Stencils, Templates

DataSheet: PA0178-S PDF

Availability: 0 pieces

Unit Price: ~~$11.59000~~

Current price of PA0178-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PA0178-S Specifications

Type	Description
Series:	Proto-Advantage PA
Package:	Bulk
Part Status:	Active
Type:	SOT/SC
Number of Positions:	6
Pitch:	0.020" (0.50mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.059" L x 0.047" W (1.50mm x 1.20mm)
Thermal Center Pad:	-
Material:	Stainless Steel
