IPC0005-S

Part No :: IPC0005-S

Manufacturer: Chip Quik, Inc.

VIGOR # :: 2880552

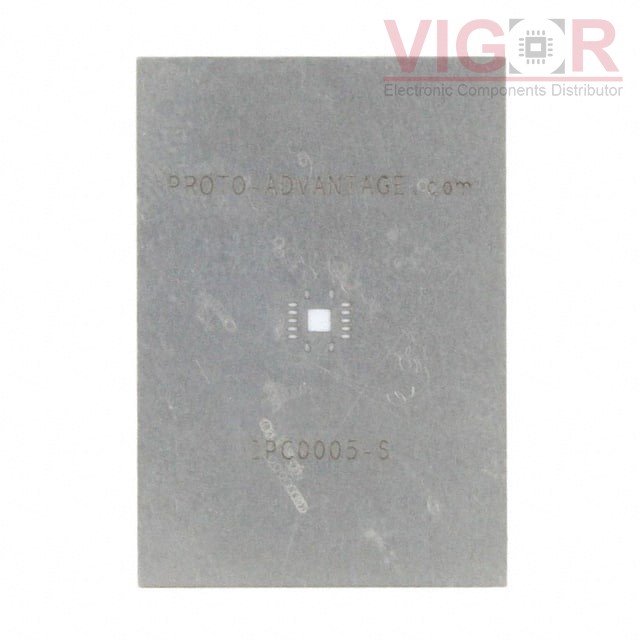

Description: QFN-14 STENCIL

Catalog: Solder Stencils, Templates

DataSheet: IPC0005-S PDF

Country of origin: -

Date code: -

IPC0005-S Specifications

Type	Description
Series:	Proto-Advantage IPC
Package:	Bulk
Part Status:	Active
Type:	QFN/LFCSP
Number of Positions:	14
Pitch:	0.020" (0.50mm)
Outer Dimension:	1.300" L x 0.900" W (33.02mm x 22.86mm)
Inner Dimension:	0.138" L x 0.138" W (3.50mm x 3.50mm)
Thermal Center Pad:	0.081" L x 0.081" W (2.05mm x 2.05mm)
Material:	Stainless Steel
