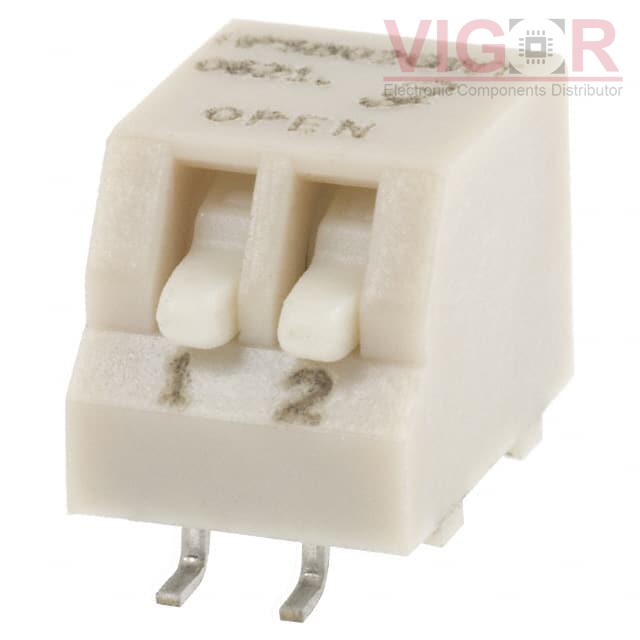

76HPSB02GWRT

Part No :: 76HPSB02GWRT

Manufacturer: Grayhill, Inc.

Description: SWITCH PIANO DIP SPST 150MA 30V

Catalog: DIP Switches

DataSheet: 76HPSB02GWRT PDF

Availability: 225 pieces

Current price of 76HPSB02GWRT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

76HPSB02GWRT Specifications

Type	Description
Series:	76HP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Circuit:	SPST
Number of Positions:	2
Current Rating (Amps):	150mA
Voltage Rating:	30VDC
Actuator Type:	Piano
Actuator Level:	Raised
Contact Material:	Copper Alloy
Contact Finish:	Gold
Height Above Board:	0.337" (8.56mm)
Mounting Type:	Surface Mount, Right Angle
Termination Style:	Gull Wing
Pitch:	0.100" (2.54mm), Full
Washable:	No
Features:	-
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
