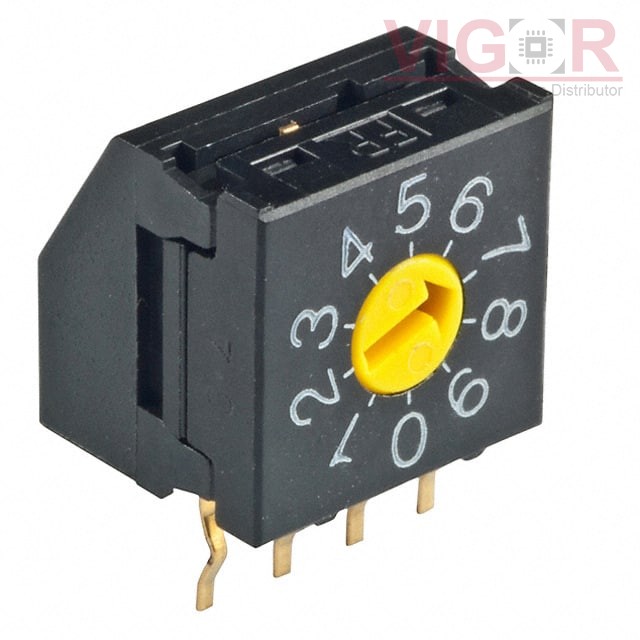

FR01FC10H-06XL

Part No :: FR01FC10H-06XL

Manufacturer: NKK Switches

VIGOR # :: 2703752

Description: SW ROTARY DIP BCD COMP 100MA 5V

Catalog: DIP Switches

DataSheet: FR01FC10H-06XL PDF

Country of origin: -

Date code: -

FR01FC10H-06XL Specifications

Type	Description
Series:	FR01
Package:	Bulk
Part Status:	Active
Circuit:	BCD Complement
Number of Positions:	10
Current Rating (Amps):	100mA
Voltage Rating:	5VDC
Actuator Type:	Rotary for Tool
Actuator Level:	Flush, Recessed
Contact Material:	Copper Alloy
Contact Finish:	Gold
Height Above Board:	0.394" (10.00mm)
Mounting Type:	Through Hole, Right Angle
Termination Style:	PC Pin
Pitch:	0.100" (2.54mm), Full
Washable:	No
Features:	-
Operating Temperature:	-25°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.1800~~	~~$4.18~~
10	~~$3.9958~~	~~$39.96~~
25	~~$3.8140~~	~~$95.35~~
50	~~$3.6325~~	~~$181.62~~
100	~~$3.2692~~	~~$326.92~~
250	~~$2.9060~~	~~$726.50~~
500	~~$2.8152~~	~~$1 407.60~~
1000	~~$2.5427~~	~~$2 542.74~~

Current price of FR01FC10H-06XL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
