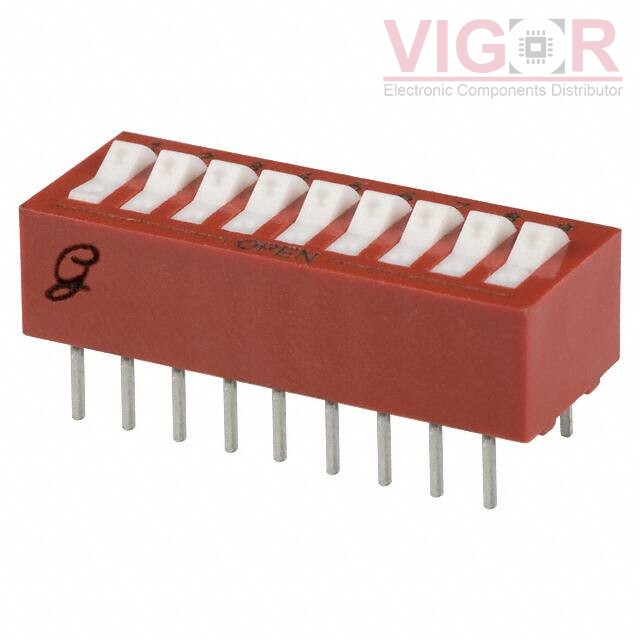

76SB09S

Part No :: 76SB09S

Manufacturer: Grayhill, Inc.

VIGOR # :: 4560036

Description: SWITCH ROCKER DIP SPST 150MA 30V

Catalog: DIP Switches

DataSheet: 76SB09S PDF

Country of origin: -

Date code: -

76SB09S Specifications

Type	Description
Series:	76
Package:	Tube
Part Status:	Obsolete
Circuit:	SPST
Number of Positions:	9
Current Rating (Amps):	150mA
Voltage Rating:	30VDC
Actuator Type:	Rocker
Actuator Level:	Raised
Contact Material:	Copper Alloy
Contact Finish:	Gold
Height Above Board:	0.315" (8.00mm)
Mounting Type:	Through Hole
Termination Style:	PC Pin
Pitch:	0.100" (2.54mm), Full
Washable:	Yes
Features:	Tape Seal
Operating Temperature:	-40°C ~ 85°C
