JD7509C

Part No :: JD7509C

Manufacturer: APEM Inc.

VIGOR # :: 4560755

Description: SWITCH KEYLOCK 3POS SP3T 4A 125V

Catalog: Keylock Switches

DataSheet: JD7509C PDF

Country of origin: -

Date code: -

JD7509C Specifications

Type	Description
Series:	JD
Package:	Tray
Part Status:	Obsolete
Circuit:	SP3T
Number of Positions:	3
Switch Function:	On-On-On
Contact Timing:	Not Specified
Current Rating (Amps):	4A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Flat Key
Key Removable Positions:	3 only
Angle of Throw:	45°
Contact Material:	Copper Alloy
Contact Finish:	Gold
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 19.00mm Dia
Features:	-
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jul 10 - Jul 14 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of JD7509C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

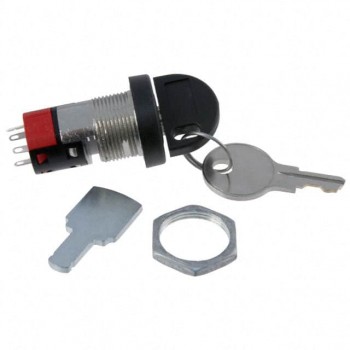

BY01AFJC03LQ22

SWITCH KEYLOCK 3POS SP3T 4A 125V

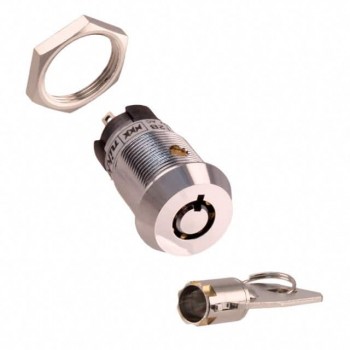

CKL12BTW01-077

SWITCH KEYLOCK 2POS SPDT 3A 250V

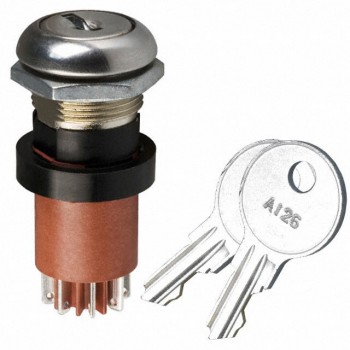

W201132C205AQ
