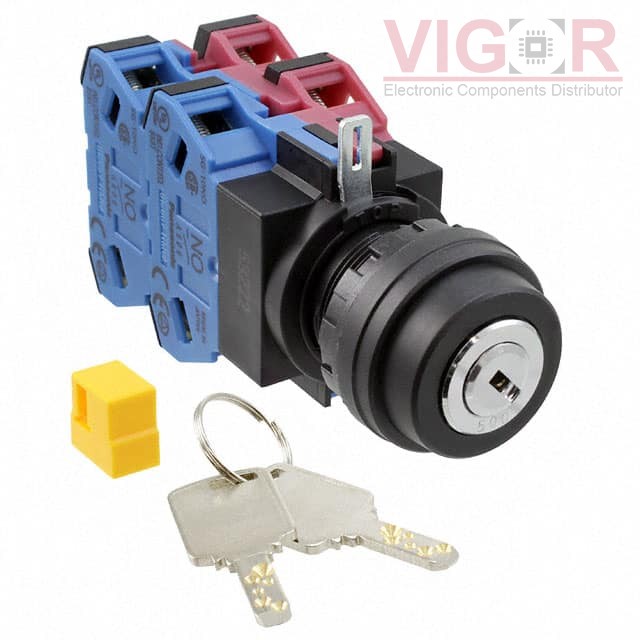

SG-D1-2A22

Part No :: SG-D1-2A22

Manufacturer: Panasonic

VIGOR # :: 4560769

Description: SWITCH KEYLCK 2POS 4PST 10A 110V

Catalog: Keylock Switches

DataSheet: SG-D1-2A22 PDF

Country of origin: -

Date code: -

SG-D1-2A22 Specifications

Type	Description
Series:	SG-D1
Package:	Bulk
Part Status:	Obsolete
Circuit:	4PST-2NO/2NC
Number of Positions:	2
Switch Function:	On-Off, Off-On
Contact Timing:	Not Specified
Current Rating (Amps):	10A (AC), 8A (DC)
Voltage Rating - AC:	110 V
Voltage Rating - DC:	24 V
Actuator Type:	Flat Key
Key Removable Positions:	All
Angle of Throw:	90°
Contact Material:	-
Contact Finish:	-
Mounting Type:	Panel Mount
Termination Style:	Screw Terminal
Panel Cutout Dimensions:	Circular - 22.30mm Dia
Features:	IP65
Operating Temperature:	-25°C ~ 60°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jul 11 - Jul 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of SG-D1-2A22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

A22RK-2AL-11

SWITCH KEYLCK 2POS DPST 10A 120V

AML27ABK2AA23BD

SWITCH KEYLOCK 2POS SPDT 3A 125V

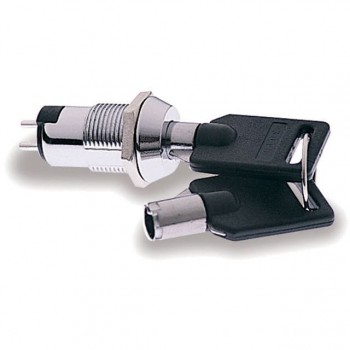

KO104B10001
