JD7509G

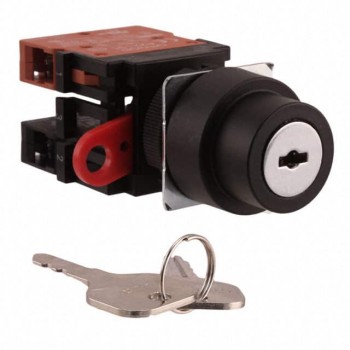

Image is for reference,
please contact us to get the real picture

Part No :: JD7509G

Manufacturer: APEM Inc.

Description: SWITCH KEYLOCK 3POS SP3T 4A 125V

Catalog: Keylock Switches

DataSheet: JD7509G PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of JD7509G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JD7509G Specifications

Type	Description
Series:	JD
Package:	Tray
Part Status:	Obsolete
Circuit:	SP3T
Number of Positions:	3
Switch Function:	On-On-On
Contact Timing:	Not Specified
Current Rating (Amps):	4A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Flat Key
Key Removable Positions:	1 only
Angle of Throw:	45°
Contact Material:	Copper Alloy
Contact Finish:	Gold
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 19.00mm Dia
Features:	-
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
