MVSR-20-22-28

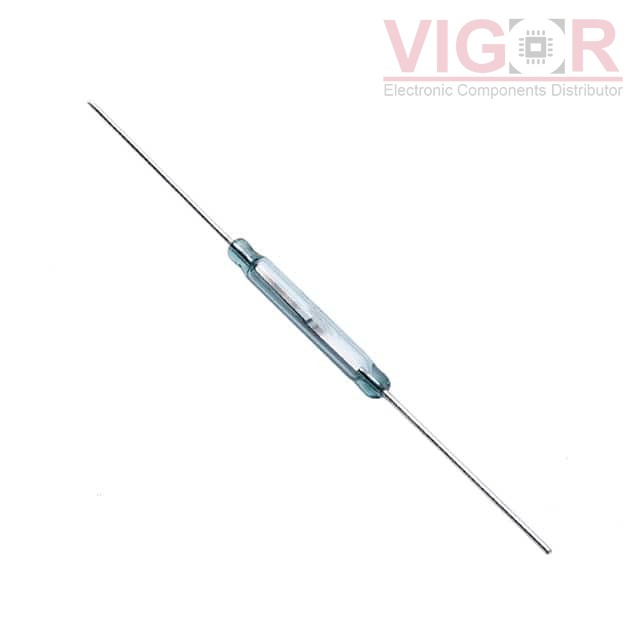

Image is for reference,
please contact us to get the real picture

Part No :: MVSR-20-22-28

Manufacturer: Wickmann / Littelfuse

Description: SWITCH REED SPST

Catalog: Magnetic, Reed Switches

DataSheet: MVSR-20-22-28 PDF

Availability: 0 pieces

Unit Price: ~~$3.80000~~

Current price of MVSR-20-22-28 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MVSR-20-22-28 Specifications

Type	Description
Series:	MVSR-20
Package:	Bulk
Part Status:	Active
Type:	Glass Body
Circuit:	SPST-NO
Operate Range:	22 ~ 28AT
Release Range:	-
Current - Switching:	350mA (AC), 500mA (DC)
Voltage - Switching AC:	265 V
Voltage - Switching DC:	1000 V
Power - Rated:	10W
Operate Time:	0.75 ms
Release Time:	0.3 ms
Mounting Type:	Through Hole
Termination Style:	Axial
Length - Overall:	2.235" (56.77mm)
Size - Body:	0.105" Dia x 0.775" L (2.66mm x 19.69mm)
Height Above Board:	-
Operating Temperature:	-75°C ~ 125°C
Capacitance:	0.2 pF
Current - Carry:	1.3A (DC)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 14 - Nov 18 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$3.80000	$3.8
10	$3.64291	$36.4291
25	$3.41533	$85.38325
50	$3.33933	$166.9665
100	$2.65628	$265.628
250	$2.50452	$626.13
500	$2.35271	$1176.355
1000	$2.20092	$2200.92
5000	$2.04913	$10245.65
