PMC-0508TH1015

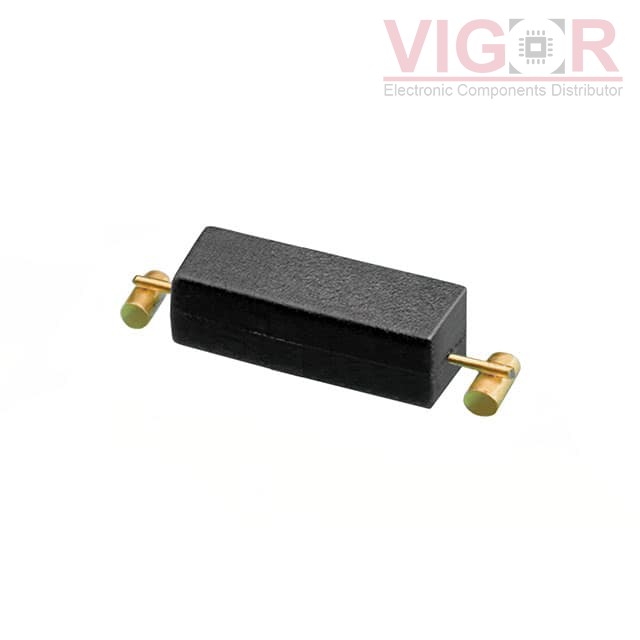

Image is for reference,
please contact us to get the real picture

Part No :: PMC-0508TH1015

Manufacturer: PIC GmbH

Description: MICRO SMD REED SWITCH PITCH 8.9

Catalog: Magnetic, Reed Switches

DataSheet: PMC-0508TH1015 PDF

Availability: 90 pieces

Unit Price: ~~$6.35000~~

Current price of PMC-0508TH1015 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PMC-0508TH1015 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Molded Body
Circuit:	SPST-NO
Operate Range:	5 ~ 10AT
Release Range:	2AT
Current - Switching:	250mA (AC/DC)
Voltage - Switching AC:	140 V
Voltage - Switching DC:	175 V
Power - Rated:	5W
Operate Time:	0.35 ms
Release Time:	0.1 ms
Mounting Type:	Surface Mount
Termination Style:	Axial
Length - Overall:	0.398" (10.11mm)
Size - Body:	0.256" L x 0.114" W x 0.091" H (6.50mm x 2.90mm x 2.30mm)
Height Above Board:	-
Operating Temperature:	-40°C ~ 125°C
Capacitance:	-
Current - Carry:	500mA (AC/DC)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 90

Shipped from

HK warehouse

Expected Shipping Date

Nov 13 - Nov 17 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$6.35000	$6.35
10	$5.51721	$55.1721
25	$4.96549	$124.13725
50	$4.68963	$234.4815
100	$4.41377	$441.377
250	$4.13791	$1034.4775
500	$3.93102	$1965.51
1000	$3.79308	$3793.08
