M2022TJW02-FA-2A-F

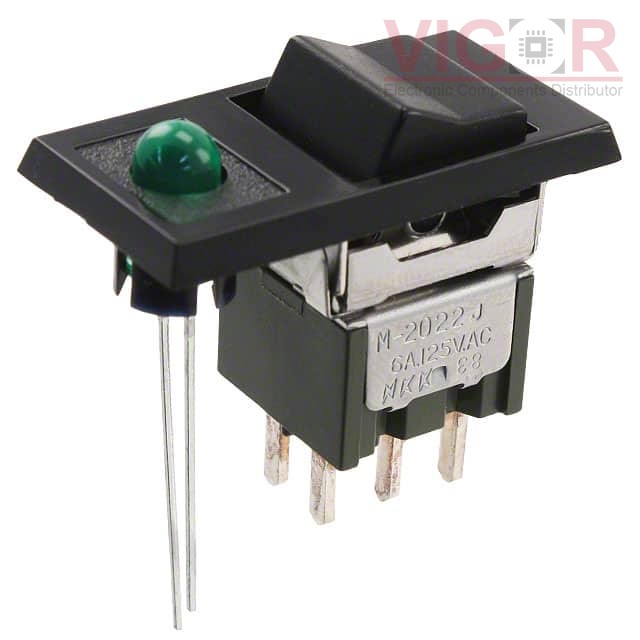

Image is for reference,
please contact us to get the real picture

Part No :: M2022TJW02-FA-2A-F

Manufacturer: NKK Switches

Description: SWITCH ROCKER DPDT 6A 125V

Catalog: Rocker Switches

DataSheet: M2022TJW02-FA-2A-F PDF

Availability: 11 pieces

Unit Price: ~~$8.72000~~

Current price of M2022TJW02-FA-2A-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M2022TJW02-FA-2A-F Specifications

Type	Description
Series:	M
Package:	Tray
Part Status:	Active
Mounting Type:	Panel Mount, Snap-In
Circuit:	DPDT
Switch Function:	On-On
Current Rating (Amps):	6A (AC), 4A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Concave (Standard V) - Illuminated
Color - Actuator/Cap:	Black
Actuator Marking:	No Marking
Illumination Type, Color:	LED, Green
Illumination Voltage (Nominal):	2.1 VDC
Termination Style:	Quick Connect - 0.062" (1.5mm)
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Panel Cutout Dimensions:	Rectangular - 15.90mm x 13.10mm
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
