JWL22RCA/UCV

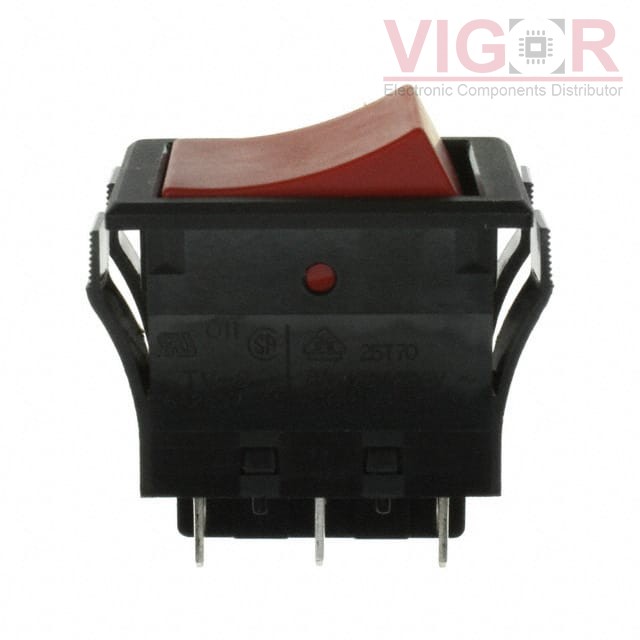

Product image
Product thumb
Part No :

JWL22RCA/UCV

Manufacturer
NKK Switches
VIGOR # :

2705524

Description
SWITCH ROCKER DPDT 16A 125V
Catalog
Rocker Switches
DataSheet
JWL22RCA/UCV PDF
Country of origin
-
Date code
-
ads
JWL22RCA/UCV Specifications
Type Description
Series:JW
Package:Bulk
Part Status:Active
Mounting Type:Panel Mount, Snap-In
Circuit:DPDT
Switch Function:On-On
Current Rating (Amps):16A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Concave (Curved)
Color - Actuator/Cap:Red
Actuator Marking:No Marking
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Termination Style:Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection:Dust Proof
Features:Epoxy Sealed Terminals
Panel Cutout Dimensions:Rectangular - 29.50mm x 20.50mm
Operating Temperature:-25°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 32
Shipped from
HK warehouse
Expected Shipping Date
Apr 01 - Apr 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $13.0000 $13.00
10 $11.7000 $117.00
25 $11.3751 $284.38
50 $11.0500 $552.50
100 $10.7250 $1 072.50
250 $10.4000 $2 600.00
500 $9.1000 $4 550.00
1000 $8.6125 $8 612.50

Current price of JWL22RCA/UCV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

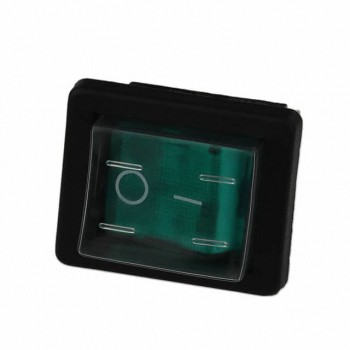

C1353ALGNE
