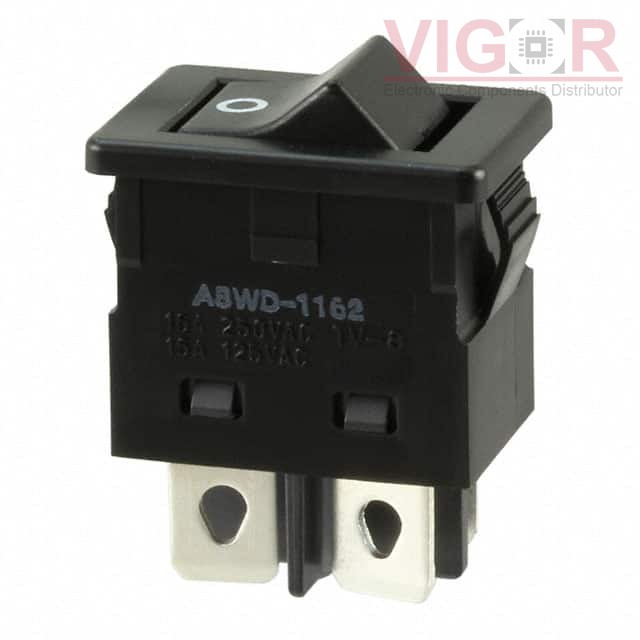

A8WD-2262

Part No :: A8WD-2262

Manufacturer: Omron Electronics Components

VIGOR # :: 4560591

Description: SWITCH ROCKER DPST 16A 125V

Catalog: Rocker Switches

DataSheet: A8WD-2262 PDF

Country of origin: -

Date code: -

A8WD-2262 Specifications

Type	Description
Series:	A8W
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Panel Mount, Snap-In
Circuit:	DPST
Switch Function:	On-Off
Current Rating (Amps):	16A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Concave (Standard V)
Color - Actuator/Cap:	White
Actuator Marking:	O I
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder, Quick Connect - 0.250" (6.3mm)
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	-
Panel Cutout Dimensions:	Rectangular - 22.30mm x 14.80mm
Operating Temperature:	-25°C ~ 55°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Aug 15 - Aug 19 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of A8WD-2262 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
