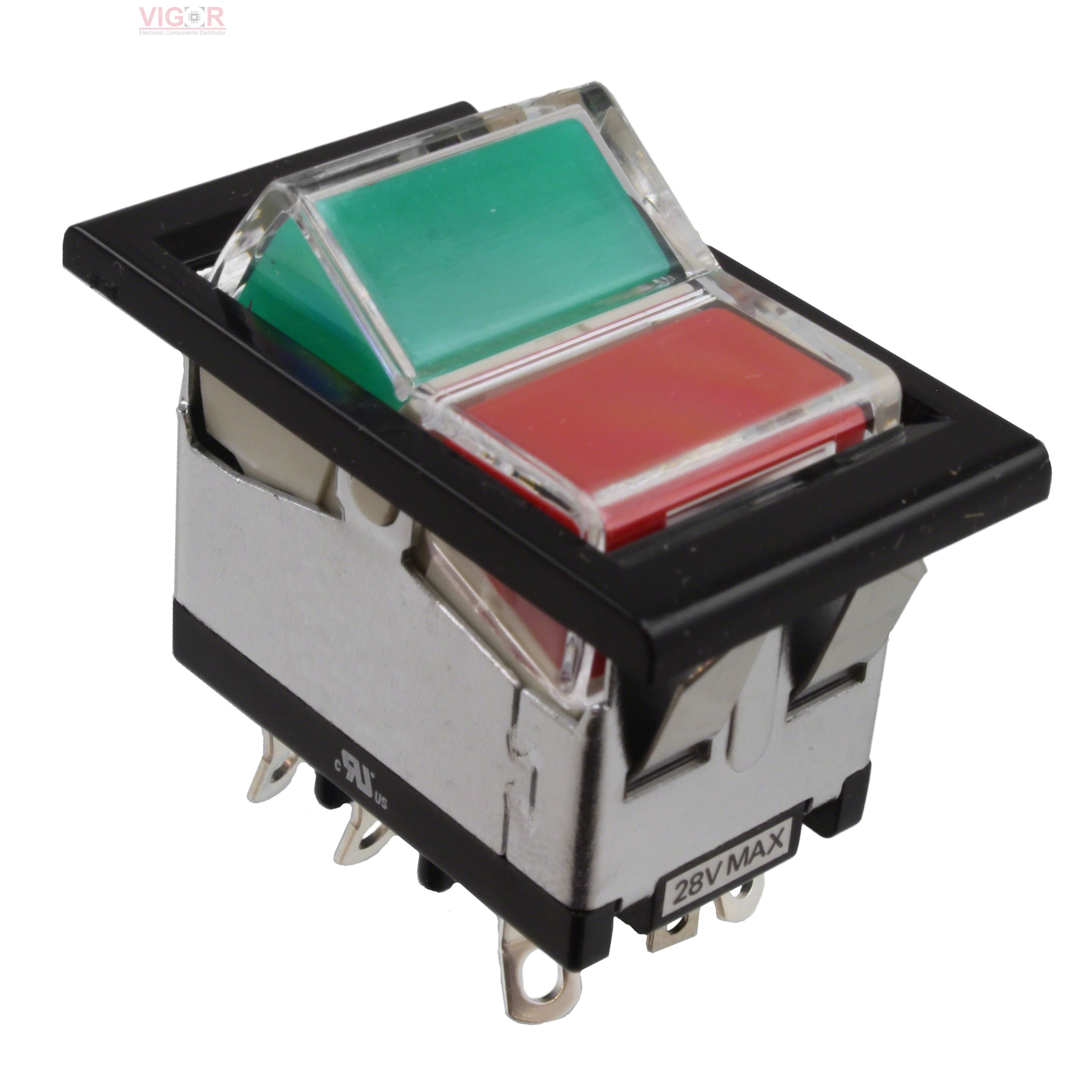

LW3122-K4CF-A

Part No :: LW3122-K4CF-A

Manufacturer: NKK Switches

VIGOR # :: 4560722

Description: SWITCH ROCKER DPDT 10A 125V

Catalog: Rocker Switches

DataSheet: LW3122-K4CF-A PDF

Country of origin: -

Date code: -

LW3122-K4CF-A Specifications

Type	Description
Series:	LW
Package:	Bulk
Part Status:	Obsolete
Mounting Type:	Panel Mount, Snap-In
Circuit:	DPDT
Switch Function:	On-On
Current Rating (Amps):	10A (AC), 6A (DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Concave (Standard V) - Illuminated
Color - Actuator/Cap:	Clear (Red, Green Filter/Diffuser)
Actuator Marking:	No Marking
Illumination Type, Color:	Incandescent, Red/Green
Illumination Voltage (Nominal):	24 VAC
Termination Style:	Solder Lug
Ingress Protection:	-
Features:	-
Panel Cutout Dimensions:	Rectangular - 32.00mm x 19.80mm
Operating Temperature:	-20°C ~ 50°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 22 - Jan 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of LW3122-K4CF-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

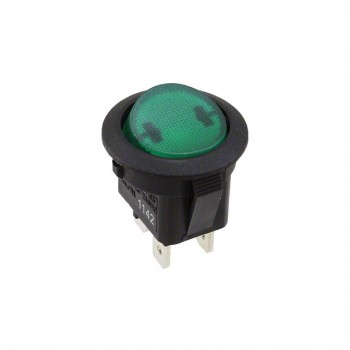

RR812C1000-136

SWITCH ROCKER DPST 16A 125V

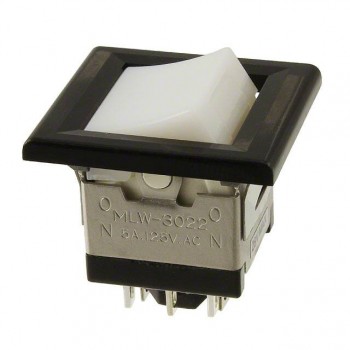

MLW3022-06-RB-2A

SWITCH ROCKER DPDT 5A 125V

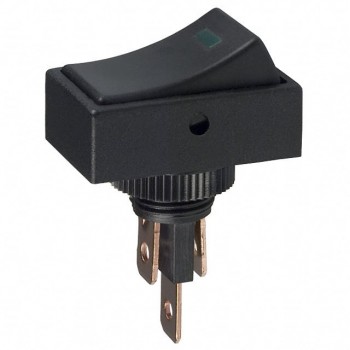

CLS-RR11A12250G
