24001-03N

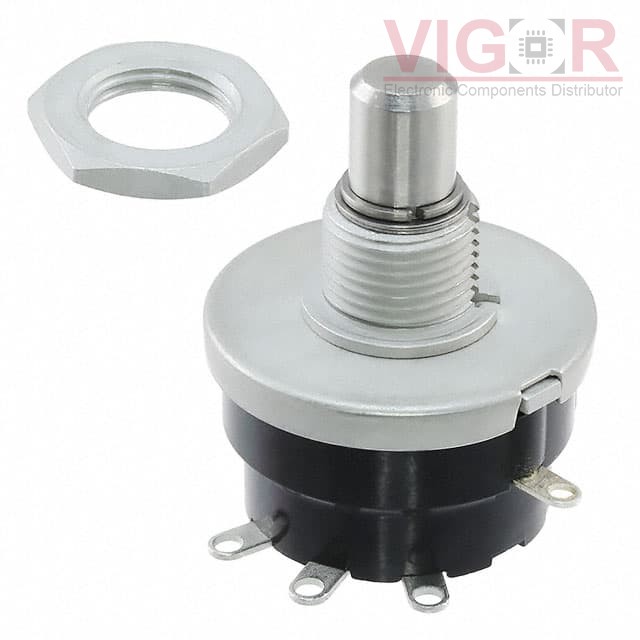

Image is for reference,
please contact us to get the real picture

Part No :: 24001-03N

Manufacturer: Grayhill, Inc.

Description: SWITCH ROTARY 3POS 1A 115V

Catalog: Rotary Switches

DataSheet: 24001-03N PDF

Availability: 22 pieces

Unit Price: ~~$26.30000~~

Current price of 24001-03N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

24001-03N Specifications

Type	Description
Series:	24
Package:	Bulk
Part Status:	Active
Number of Positions:	3
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP3T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	1A (AC/DC)
Voltage Rating - AC:	115 V
Voltage Rating - DC:	28 V
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	7.92mm
Angle of Throw:	36°
Contact Material:	Phosphor Bronze
Contact Finish:	Silver
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	14.68mm

Please confirm the specifications of the products when ordering.
