KC15A9.501NPF

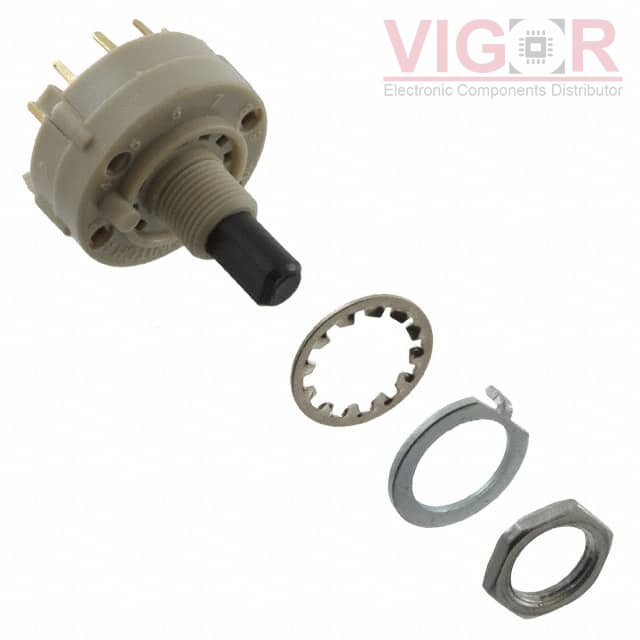

Image is for reference,
please contact us to get the real picture

Part No :: KC15A9.501NPF

Manufacturer: E-Switch

Description: SWITCH ROTARY 5POS 350MA 125V

Catalog: Rotary Switches

DataSheet: KC15A9.501NPF PDF

Availability: 1402 pieces

Unit Price: ~~$7.39000~~

Current price of KC15A9.501NPF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

KC15A9.501NPF Specifications

Type	Description
Series:	KC
Package:	Bulk
Part Status:	Active
Number of Positions:	5
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP5T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	350mA (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Flatted (6.35mm Dia)
Actuator Length:	9.50mm
Angle of Throw:	30°
Contact Material:	Copper Alloy
Contact Finish:	Gold
Mounting Type:	Panel Mount, Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	14.20mm

Please confirm the specifications of the products when ordering.
