HS16-5S

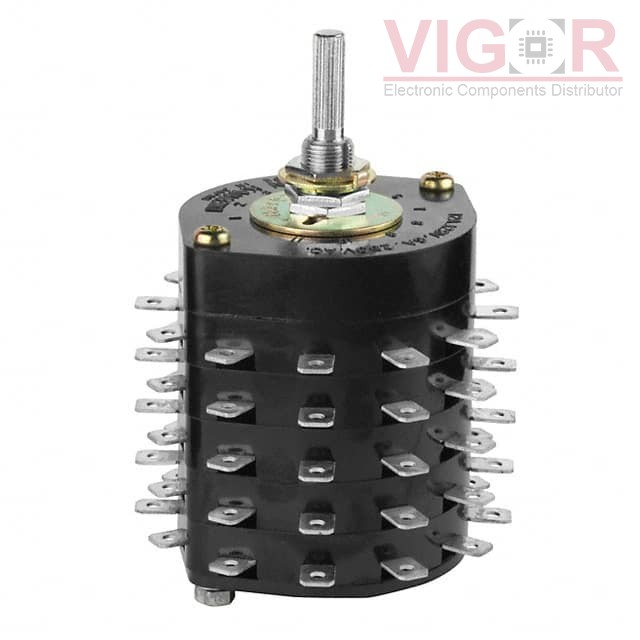

Image is for reference,
please contact us to get the real picture

Part No :: HS16-5S

Manufacturer: NKK Switches

Description: SWITCH ROTARY 2-11POS 12A 125V

Catalog: Rotary Switches

DataSheet: HS16-5S PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HS16-5S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HS16-5S Specifications

Type	Description
Series:	HS
Package:	Box
Part Status:	Obsolete
Number of Positions:	2 ~ 11
Index Stops:	Adjustable
Number of Decks:	5
Number of Poles per Deck:	1
Circuit per Deck:	SP11T
Contact Timing:	Shorting (MBB)
Current Rating (Amps):	12A (AC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	-
Actuator Type:	Knurled (6mm Dia)
Actuator Length:	15.00mm
Angle of Throw:	30°
Contact Material:	Phosphor Bronze
Contact Finish:	-
Mounting Type:	Panel Mount
Termination Style:	Solder Lug
Features:	-
Depth Behind Panel:	71.50mm
