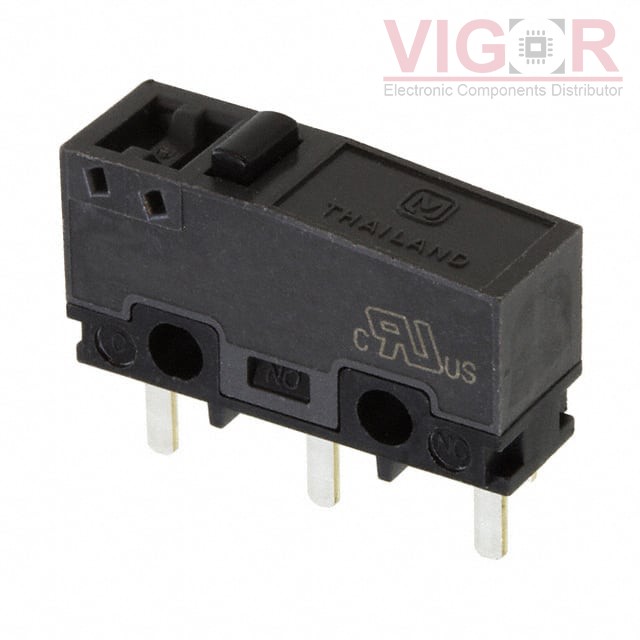

AVM36053-A

Part No :: AVM36053-A

Manufacturer: Panasonic

Description: SWITCH SNAP ACTION SPDT 5A 125V

Catalog: Snap Action, Limit Switches

DataSheet: AVM36053-A PDF

Availability: 0 pieces

Unit Price: ~~$1.45200~~

Current price of AVM36053-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AVM36053-A Specifications

Type	Description
Series:	AVM3
Package:	Bulk
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	5A (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Round (Pin Plunger)
Mounting Type:	Through Hole, Right Angle
Termination Style:	PC Pin
Ingress Protection:	-
Features:	Actuator Mounted Right Side
Operating Force:	150gf
Release Force:	20gf
Pretravel:	0.024" (0.6mm)
Differential Travel:	0.004" (0.1mm)
Overtravel:	0.015" (0.4mm)
Operating Temperature:	-25°C ~ 85°C
