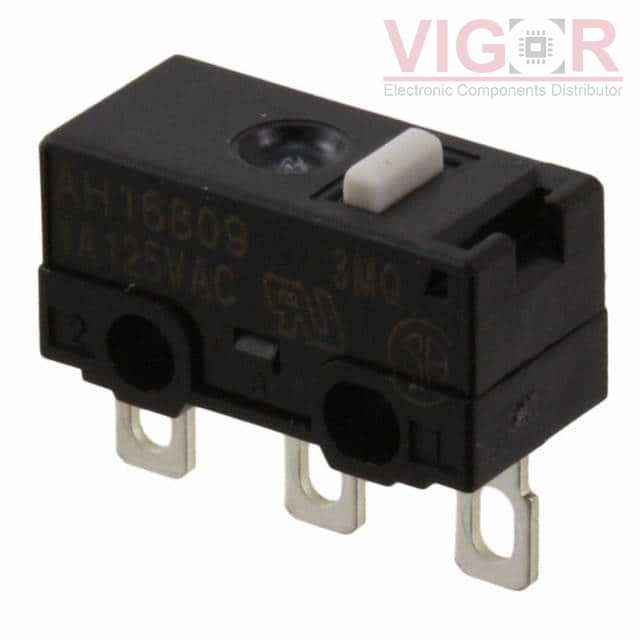

AH16809-A

Part No :: AH16809-A

Manufacturer: Panasonic

VIGOR # :: 2711137

Description: SWITCH SNAP ACTION SPDT 1A 125V

Catalog: Snap Action, Limit Switches

DataSheet: AH16809-A PDF

Country of origin: -

Date code: -

AH16809-A Specifications

Type	Description
Series:	AH1
Package:	Tube
Part Status:	Active
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	1A (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Round (Pin Plunger)
Mounting Type:	Chassis Mount
Termination Style:	Solder Lug
Ingress Protection:	-
Features:	-
Operating Force:	74gf
Release Force:	10gf
Pretravel:	0.020" (0.5mm)
Differential Travel:	0.005" (0.12mm)
Overtravel:	0.010" (0.25mm)
Operating Temperature:	-25°C ~ 85°C
