Z-15GW2277-B

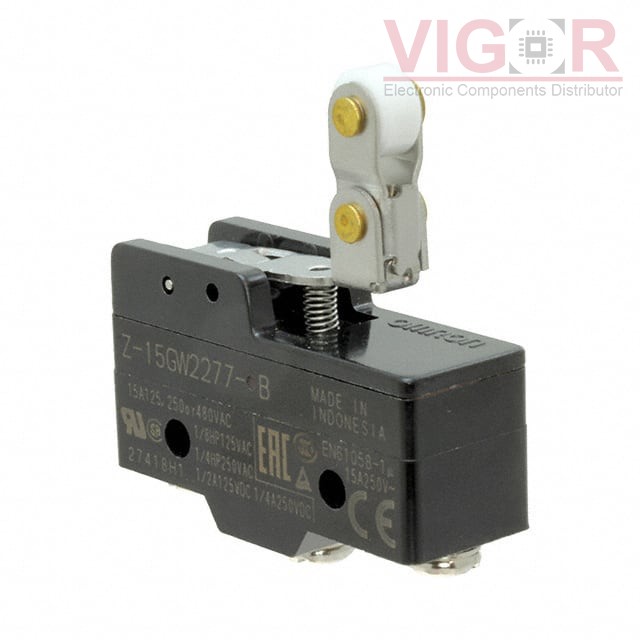

Product image
Product thumb
Part No :

Z-15GW2277-B

Manufacturer
Omron Automation & Safety Services
VIGOR # :

2711775

Description
SWITCH SNAP ACTION SPDT 15A 125V
Catalog
Snap Action, Limit Switches
DataSheet
Z-15GW2277-B PDF
Country of origin
-
Date code
-
ads
Z-15GW2277-B Specifications
Type Description
Series:Z
Package:Tray
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):15A (AC), 6A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Roller
Mounting Type:Chassis Mount
Termination Style:Screw Terminal
Ingress Protection:IP00
Features:-
Operating Force:180gf
Release Force:50gf
Pretravel:-
Differential Travel:0.031" (0.8mm)
Overtravel:0.094" (2.4mm)
Operating Temperature:-25°C ~ 80°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 14 - Jan 18 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $24.22 $24.22
10 $18.16 $181.61
25 $16.65 $416.20
50 $15.64 $781.95
100 $14.63 $1 463.00
250 $14.13 $3 531.38
500 $13.62 $6 810.53

Current price of Z-15GW2277-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
