D3V-01-1A2-K

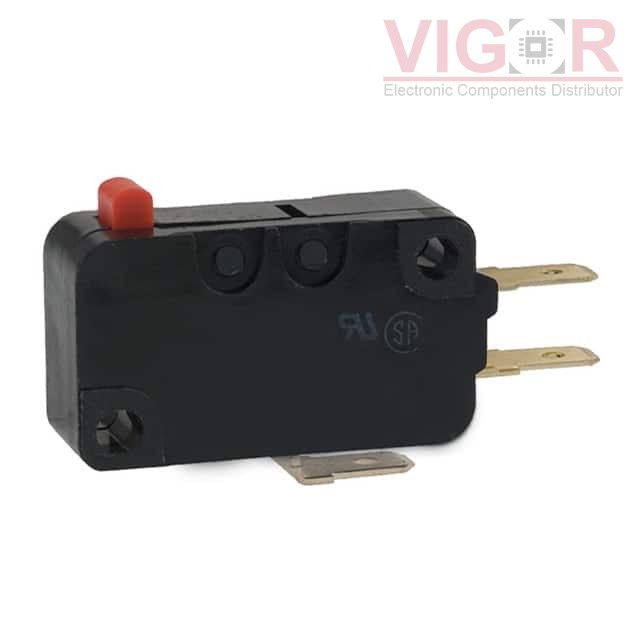

Product image
Product thumb
Part No :

D3V-01-1A2-K

Manufacturer
Omron Electronics Components
VIGOR # :

2711871

Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
DataSheet
D3V-01-1A2-K PDF
Country of origin
-
Date code
-
ads
D3V-01-1A2-K Specifications
Type Description
Series:D3V
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection:IP40
Features:-
Operating Force:25gf
Release Force:3.059gf
Pretravel:0.047" (1.2mm)
Differential Travel:0.016" (0.4mm)
Overtravel:0.040" (1.0mm)
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 97
Shipped from
HK warehouse
Expected Shipping Date
Jun 18 - Jun 22 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.6800 $4.68
10 $4.1296 $41.30
25 $3.8538 $96.35
50 $3.6703 $183.52
100 $3.1198 $311.98
250 $2.8445 $711.12
500 $2.6610 $1 330.50
1000 $2.5692 $2 569.22

Current price of D3V-01-1A2-K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
