D2SW-01L3H

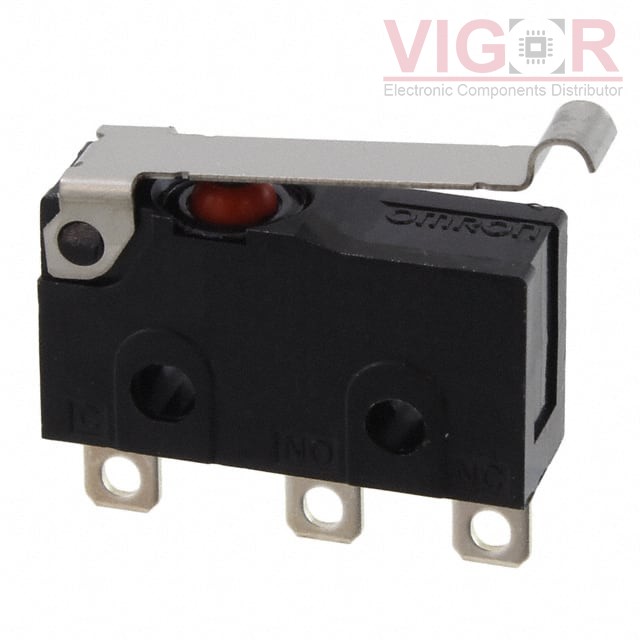

Product image
Product thumb
Part No :

D2SW-01L3H

Manufacturer
Omron Electronics Components
VIGOR # :

2712098

Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
DataSheet
D2SW-01L3H PDF
Country of origin
-
Date code
-
ads
D2SW-01L3H Specifications
Type Description
Series:D2SW
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Simulated Roller
Mounting Type:Chassis Mount
Termination Style:Solder Lug
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:-
Operating Force:60gf
Release Force:6.118gf
Pretravel:-
Differential Travel:0.031" (0.8mm)
Overtravel:0.040" (1.0mm)
Operating Temperature:-40°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 280
Shipped from
HK warehouse
Expected Shipping Date
Jan 15 - Jan 19 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.43 $5.43
10 $4.34 $43.43
25 $4.13 $103.14
50 $4.02 $200.85
100 $3.47 $347.42
250 $3.26 $814.26
500 $3.09 $1 547.10
1000 $2.99 $2 985.63

Current price of D2SW-01L3H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
SAJ25YXRHL147SDTSEQ

SAJ25YXRHL147SDTSEQ

SMINSA SW RLEV1.47N 5A/3A AC 3A

V-151-1C26

V-151-1C26

SWITCH SNAP ACTION SPDT 15A 250V

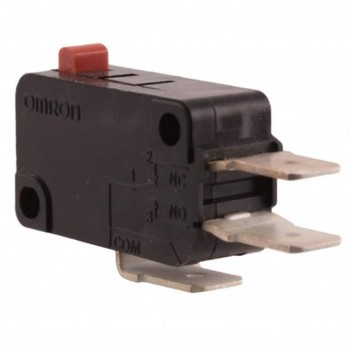

V-10-6C5
