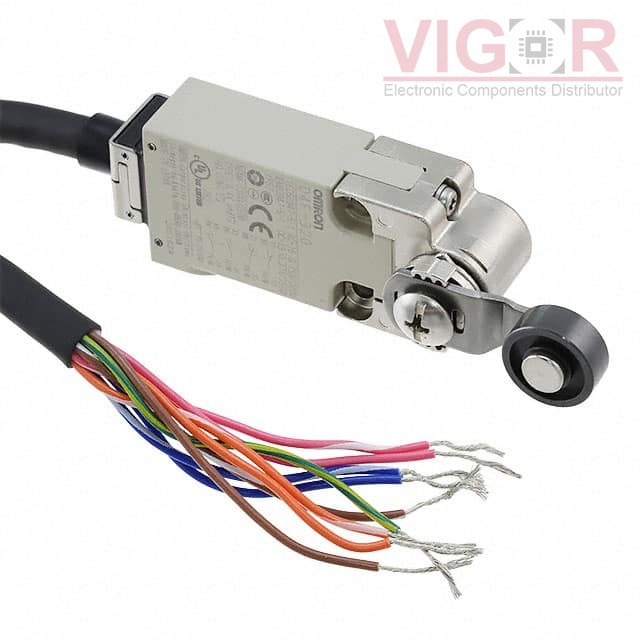

Part No :

D4F-320-5D

Manufacturer
Omron Automation & Safety Services
VIGOR # :

2713345

Description
SWITCH SNAP 4PST 15A 120V
Catalog
Snap Action, Limit Switches
DataSheet
D4F-320-5D PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:D4F
Package:Bulk
Part Status:Active
Circuit:4PST-2NO/2NC
Switch Function:On-Mom, Off-Mom
Current Rating (Amps):15A (AC), 550mA (DC)
Voltage Rating - AC:120 V
Voltage Rating - DC:125 V
Actuator Type:Side Rotary, Roller
Mounting Type:Chassis Mount
Termination Style:Cable Leads
Ingress Protection:IP67 - Dust Tight, Waterproof
Features:Cable Length 5m
Operating Force:510gf
Release Force:51gf
Pretravel:12°
Differential Travel:-
Overtravel:40°
Operating Temperature:-30°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Nov 18 - Nov 22 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $216.3400 $216.34
10 $209.7842 $2 097.84
25 $196.6727 $4 916.82
50 $186.8391 $9 341.95

Current price of D4F-320-5D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
