Z-01HW22

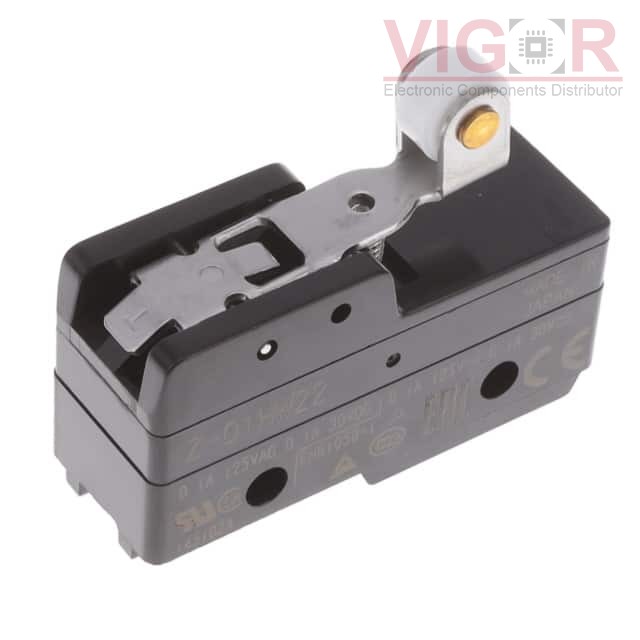

Product image
Product thumb
Part No :

Z-01HW22

Manufacturer
Omron Automation & Safety Services
VIGOR # :

2714497

Description
SWITCH SNAP ACT SPDT 100MA 125V
Catalog
Snap Action, Limit Switches
DataSheet
Z-01HW22 PDF
Country of origin
-
Date code
-
ads
Z-01HW22 Specifications
Type Description
Series:Z
Package:Bulk
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):100mA (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Roller
Mounting Type:Chassis Mount
Termination Style:Solder Lug
Ingress Protection:IP00
Features:-
Operating Force:160gf
Release Force:28gf
Pretravel:-
Differential Travel:0.020" (0.5mm)
Overtravel:0.094" (2.4mm)
Operating Temperature:-25°C ~ 80°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1
Shipped from
HK warehouse
Expected Shipping Date
Jun 03 - Jun 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $26.6600 $26.66
10 $19.9924 $199.92
25 $18.3264 $458.16
50 $17.2157 $860.79
100 $16.1050 $1 610.50
250 $15.5497 $3 887.42
500 $14.9943 $7 497.17

Current price of Z-01HW22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
E13-00K

E13-00K

SWITCH SNAP ACTION SPDT 15A 125V

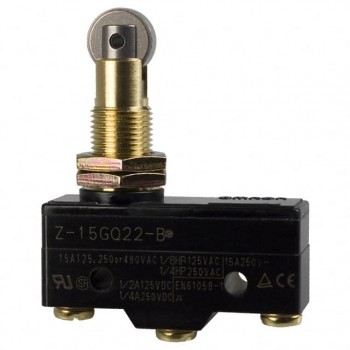

Z-15HQ22-B
