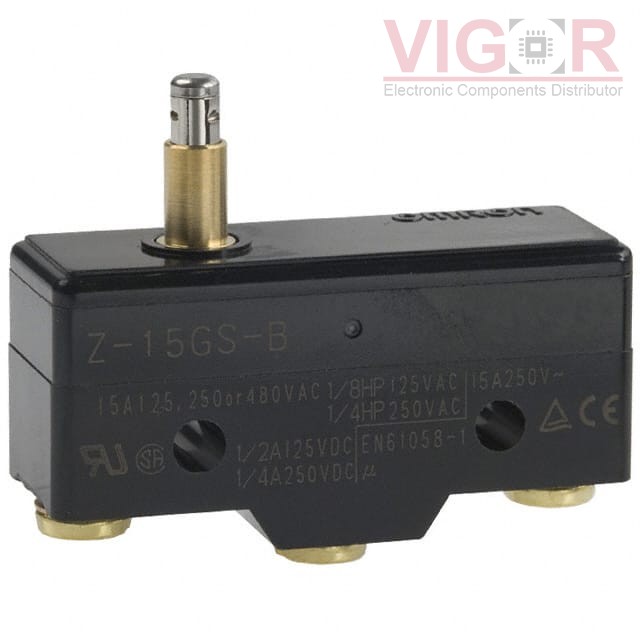

Part No :

Z-15GS-B

Manufacturer
Omron Automation & Safety Services
VIGOR # :

2714523

Description
SWITCH SNAP ACTION SPDT 15A 125V
Catalog
Snap Action, Limit Switches
DataSheet
Z-15GS-B PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:Z
Package:Tray
Part Status:Active
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):15A (AC), 6A (DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Round (Pin Plunger)
Mounting Type:Chassis Mount
Termination Style:Screw Terminal
Ingress Protection:IP00
Features:-
Operating Force:250 ~ 350gf
Release Force:114gf
Pretravel:0.015" (0.4mm)
Differential Travel:0.002" (0.05mm)
Overtravel:0.062" (1.6mm)
Operating Temperature:-25°C ~ 80°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Awaiting confirmation
Pricing(USD)
Quantity Unit Price Ext. Price
1 $17.5500 $17.55
10 $13.6115 $136.11
25 $12.8948 $322.37
50 $12.1783 $608.92
100 $11.1037 $1 110.37
250 $10.3873 $2 596.83
500 $10.0292 $5 014.58
1000 $9.6710 $9 670.96

Current price of Z-15GS-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
