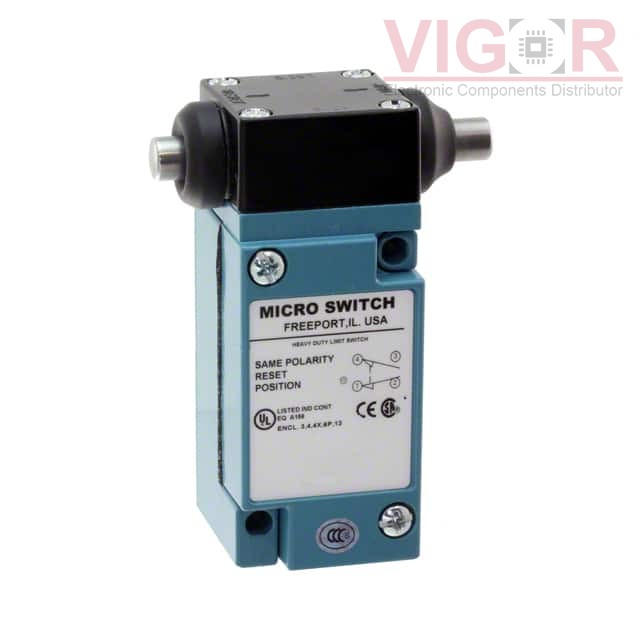

LSG1A

Part No :: LSG1A

Manufacturer: Honeywell Sensing and Productivity Solutions

VIGOR # :: 2714644

Description: SWITCH SNAP ACTION SPDT 10A 120V

Catalog: Snap Action, Limit Switches

DataSheet: LSG1A PDF

Country of origin: -

Date code: -

LSG1A Specifications

Type	Description
Series:	HDLS
Package:	Bulk
Part Status:	Active
Circuit:	SPDT (DB/DM)
Switch Function:	On-On
Current Rating (Amps):	10A (AC), 800mA (DC)
Voltage Rating - AC:	120 V
Voltage Rating - DC:	115 V
Actuator Type:	Side Plunger
Mounting Type:	Chassis Mount
Termination Style:	Plug In
Ingress Protection:	-
Features:	-
Operating Force:	4536gf
Release Force:	-
Pretravel:	0.170" (4.3mm)
Differential Travel:	0.090" (2.3mm)
Overtravel:	0.079" (2.0mm)
Operating Temperature:	-1°C ~ 93°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 21 - Jan 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$164.22~~	~~$164.22~~

Current price of LSG1A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LCA10150P00LC

SWITCH SNAP ACTION SPDT 10A 125V

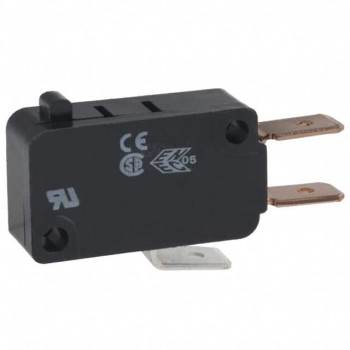

V7-1Z19E9

SWITCH SNAP ACTION SPDT 25A 277V

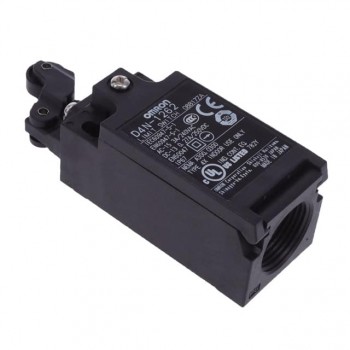

D4N-1262
