AVM36559

AVM36559

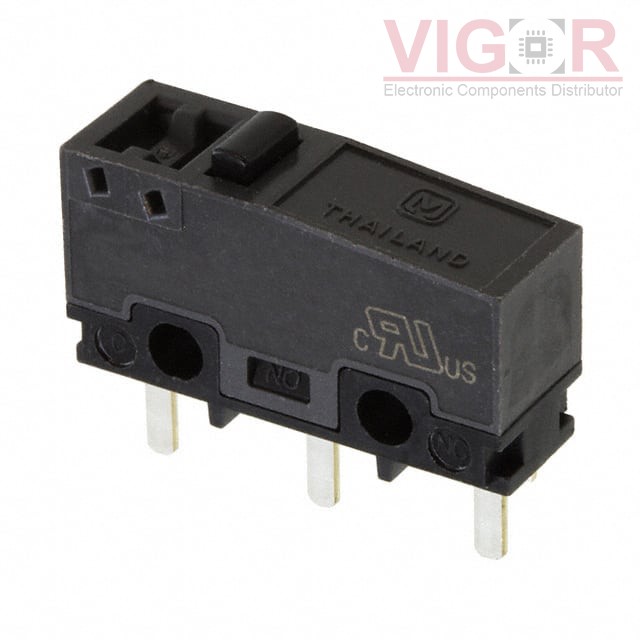

Image is for reference,
please contact us to get the real picture

Part No :

AVM36559

Manufacturer
Panasonic
Description
SWITCH SNAP ACTION SPDT 5A 125V
Catalog
Snap Action, Limit Switches
Shipped from
HK warehouse
Expected Shipping Date
Oct 15 - Oct 19 2025
DataSheet
AVM36559 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AVM36559 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AVM36559 Specifications
Type Description
Series:AVM3
Package:Bulk
Part Status:Obsolete
Circuit:SPDT
Switch Function:On-Mom
Current Rating (Amps):5A (AC/DC)
Voltage Rating - AC:125 V
Voltage Rating - DC:30 V
Actuator Type:Lever, Roller
Mounting Type:Through Hole, Right Angle
Termination Style:PC Pin
Ingress Protection:-
Features:Actuator Mounted Right Side
Operating Force:60gf
Release Force:4.079gf
Pretravel:0.100" (2.5mm)
Differential Travel:0.020" (0.5mm)
Overtravel:0.032" (0.81mm)
Operating Temperature:-25°C ~ 85°C
