AZ46019

Part No :: AZ46019

Manufacturer: Panasonic

VIGOR # :: 4562387

Description: SWITCH SNAP ACTION SPDT 5A 125V

Catalog: Snap Action, Limit Switches

DataSheet: AZ46019 PDF

Country of origin: -

Date code: -

AZ46019 Specifications

Type	Description
Series:	AZ4
Package:	Bulk
Part Status:	Obsolete
Circuit:	SPDT
Switch Function:	On-Mom
Current Rating (Amps):	5A (AC/DC)
Voltage Rating - AC:	125 V
Voltage Rating - DC:	30 V
Actuator Type:	Round (Pin Plunger)
Mounting Type:	Chassis Mount
Termination Style:	Plug In
Ingress Protection:	IP64 - Dust Tight, Water Resistant
Features:	-
Operating Force:	700gf
Release Force:	70gf
Pretravel:	0.040" (1.0mm)
Differential Travel:	0.006" (0.15mm)
Overtravel:	0.158" (4.0mm)
Operating Temperature:	-20°C ~ 60°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 02 - May 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of AZ46019 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

1478603-4

SWITCH SNAP ACTION SPDT 16A 125V

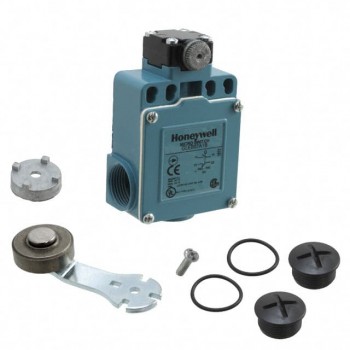

GLEB07A1B

SWITCH SNAP ACT SPDT 100MA 50V

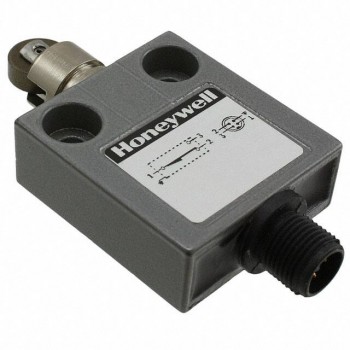

914CE2-KQ
