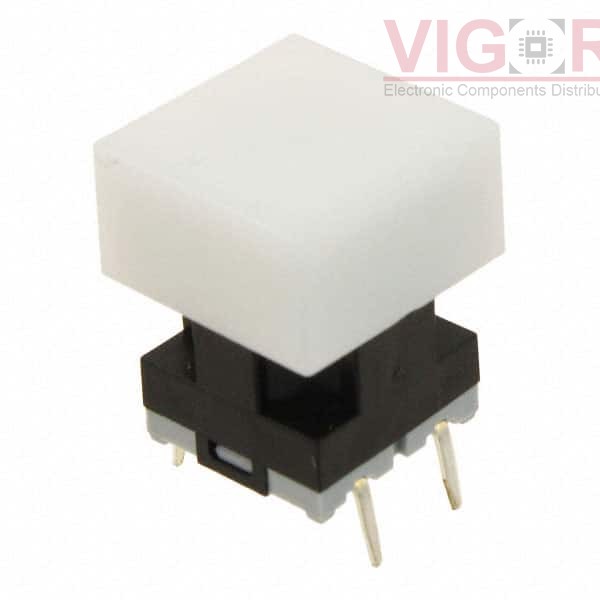

JB15HAP-2B

Part No :: JB15HAP-2B

Manufacturer: NKK Switches

Description: SWITCH TACT SPST-NO 0.125A 24V

Catalog: Tactile Switches

DataSheet: JB15HAP-2B PDF

Availability: 157776924 pieces

Current price of JB15HAP-2B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JB15HAP-2B Specifications

Type	Description
Series:	JB
Package:	Tray
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.125A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	14.70mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	10.00mm x 10.00mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	265gf
Ingress Protection:	IP67 - Dust Tight, Waterproof
Features:	Process Sealed
Operating Temperature:	-25°C ~ 70°C
