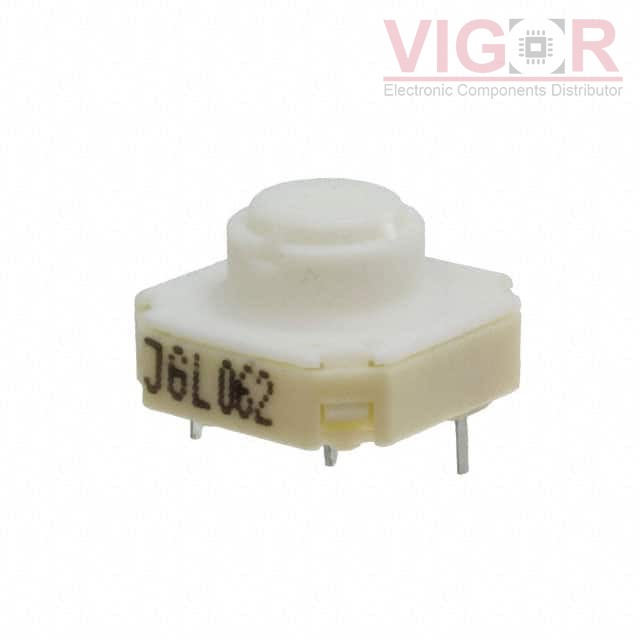

3.14100.5010000

Part No :: 3.14100.5010000

Manufacturer: RAFI

Description: SWITCH TACTILE SPST-NO 0.1A 35V

Catalog: Tactile Switches

DataSheet: 3.14100.5010000 PDF

Availability: 1569 pieces

Current price of 3.14100.5010000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

3.14100.5010000 Specifications

Type	Description
Series:	RF15R
Package:	Tube
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.1A @ 35VAC/DC
Actuator Type:	Round Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	9.70mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	15.00mm x 15.00mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	296gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-25°C ~ 70°C
