JF15SP3C

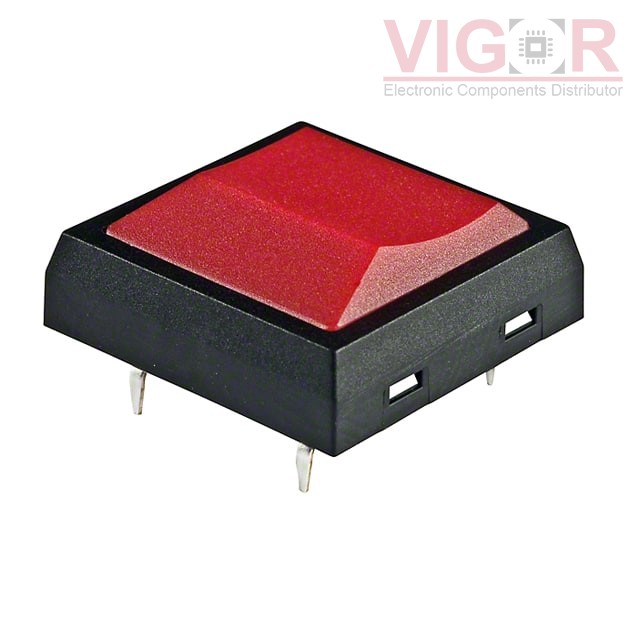

Product image
Product thumb
Part No :

JF15SP3C

Manufacturer
NKK Switches
VIGOR # :

2709208

Description
SWITCH TACTILE SPST-NO 0.05A 24V
Catalog
Tactile Switches
DataSheet
JF15SP3C PDF
Country of origin
-
Date code
-
ads
JF15SP3C Specifications
Type Description
Series:JF
Package:Tray
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 24VDC
Actuator Type:Square Button
Mounting Type:Through Hole
Actuator Height off PCB, Vertical:6.78mm
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:PC Pin
Outline:17.70mm x 17.70mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:196gf
Ingress Protection:-
Features:Process Sealed
Operating Temperature:-25°C ~ 85°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1217840
Shipped from
HK warehouse
Expected Shipping Date
Jan 12 - Jan 16 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.37 $3.37
10 $3.24 $32.37
25 $2.98 $74.44
50 $2.59 $129.47
100 $2.46 $245.99
250 $2.40 $598.80
500 $2.33 $1 165.22
1000 $1.81 $1 812.56
5000 $1.68 $8 415.50

Current price of JF15SP3C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
