5156

Part No :: 5156

Manufacturer: Keystone Electronics Corp.

VIGOR # :: 2709962

Description: SWITCH TACTILE SPST-NO 12MA 24V

Catalog: Tactile Switches

DataSheet: 5156 PDF

Country of origin: -

Date code: -

5156 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.012A @ 24VDC
Actuator Type:	Snap Dome
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	0.80mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	SMD (SMT) Tab
Outline:	8.40mm x 8.40mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	400gf
Ingress Protection:	-
Features:	Flex Membrane
Operating Temperature:	-40°C ~ 105°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1538

Shipped from

HK warehouse

Expected Shipping Date

Jan 09 - Jan 13 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.54~~	~~$0.54~~
10	~~$0.42~~	~~$4.20~~
50	~~$0.34~~	~~$16.80~~
250	~~$0.29~~	~~$73.50~~
1000	~~$0.24~~	~~$236.38~~
2500	~~$0.21~~	~~$524.98~~
5000	~~$0.20~~	~~$1 014.95~~

Current price of 5156 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

EVQ-P2202M

SWITCH TACTILE SPST-NO 0.02A 15V

FSMIJ65AB04

SWITCH TACTILE SPST-NO 50MA 12V

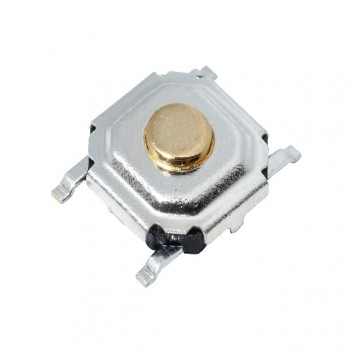

PTS526 SMG15 SMTR2 LFS
