JB15HBPE

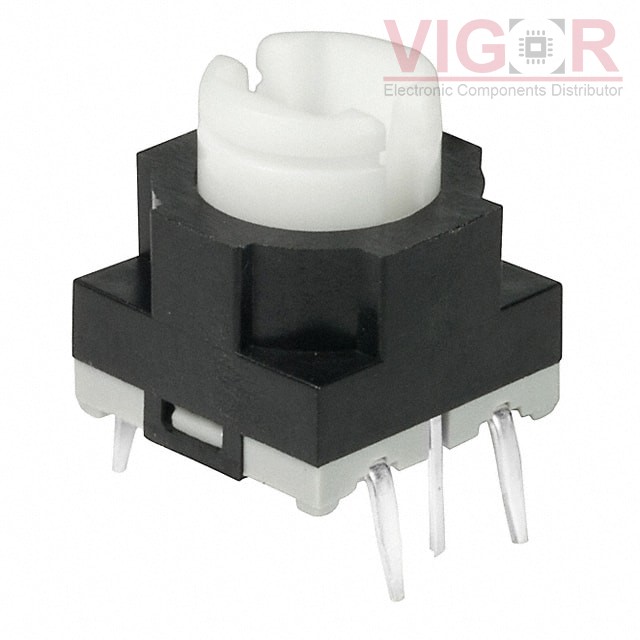

Product image
Product thumb
Part No :

JB15HBPE

Manufacturer
NKK Switches
VIGOR # :

2709984

Description
SWITCH TACT SPST-NO 0.125A 24V
Catalog
Tactile Switches
DataSheet
JB15HBPE PDF
Country of origin
-
Date code
-
ads
JB15HBPE Specifications
Type Description
Series:JB
Package:Tray
Part Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.125A @ 24VDC
Actuator Type:Plunger for Cap
Mounting Type:Through Hole
Actuator Height off PCB, Vertical:-
Actuator Length, Right Angle:-
Actuator Orientation:Top Actuated
Termination Style:PC Pin
Outline:10.00mm x 10.00mm
Illumination:Illuminated
Illumination Type, Color:LED, Yellow
Illumination Voltage (Nominal):2 VDC
Operating Force:265gf
Ingress Protection:-
Features:Process Sealed
Operating Temperature:-25°C ~ 70°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 65
Shipped from
HK warehouse
Expected Shipping Date
Sep 17 - Sep 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.4400 $4.44
10 $4.2319 $42.32
25 $4.0205 $100.51
50 $3.9146 $195.73
100 $3.5971 $359.71
250 $3.3855 $846.37
500 $3.0681 $1 534.05
1000 $2.9094 $2 909.41

Current price of JB15HBPE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
