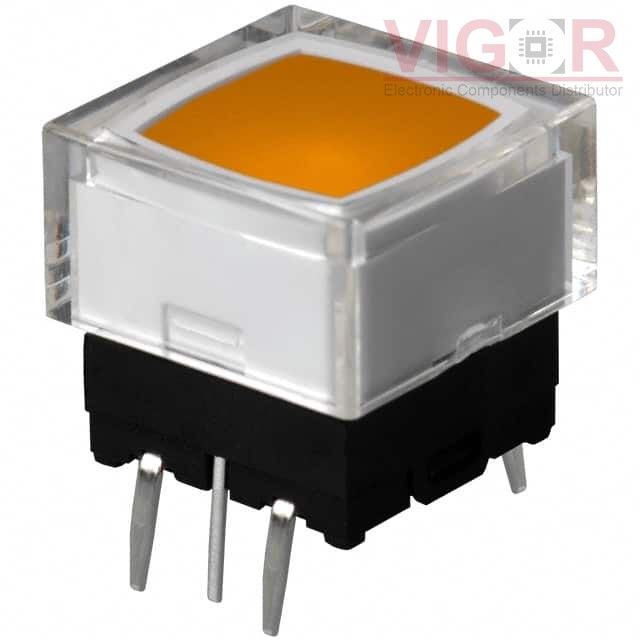

JB15LPE-JE

Part No :: JB15LPE-JE

Manufacturer: NKK Switches

Description: SWITCH TACTILE SPST-NO 0.05A 24V

Catalog: Tactile Switches

DataSheet: JB15LPE-JE PDF

Availability: 1610 pieces

Current price of JB15LPE-JE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JB15LPE-JE Specifications

Type	Description
Series:	JB
Package:	Bulk
Part Status:	Active
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 24VDC
Actuator Type:	Square Button
Mounting Type:	Through Hole
Actuator Height off PCB, Vertical:	11.20mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	PC Pin
Outline:	10.00mm x 10.00mm
Illumination:	Illuminated
Illumination Type, Color:	LED, Yellow
Illumination Voltage (Nominal):	2 VDC
Operating Force:	176gf
Ingress Protection:	-
Features:	Process Sealed
Operating Temperature:	-25°C ~ 70°C
