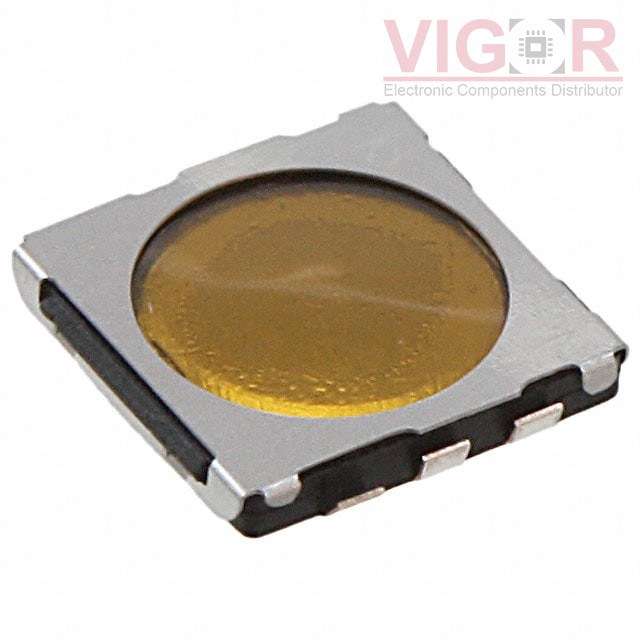

EVP-AHAD6A

Part No :: EVP-AHAD6A

Manufacturer: Panasonic

VIGOR # :: 4560904

Description: SWITCH TACTILE SPDT 0.02A 15V

Catalog: Tactile Switches

DataSheet: EVP-AHAD6A PDF

Country of origin: -

Date code: -

EVP-AHAD6A Specifications

Type	Description
Series:	EVPAH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit:	SPST-NO x 2
Switch Function:	Off-Mom-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Flush
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	0.59mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	J Lead
Outline:	4.10mm x 4.00mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	80/160gf
Ingress Protection:	-
Features:	Grounding Pin
Operating Temperature:	-20°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 02 - Apr 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of EVP-AHAD6A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

KSA0V210

SWITCH TACTILE SPST-NO 0.05A 32V

FSM4J

SWITCH TACTILE SPST-NO 0.05A 24V

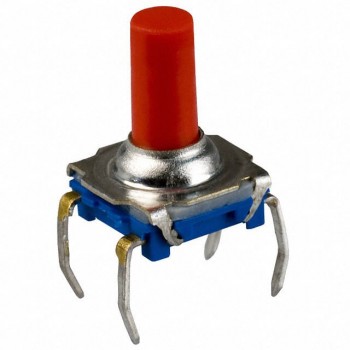

KSL0M330
