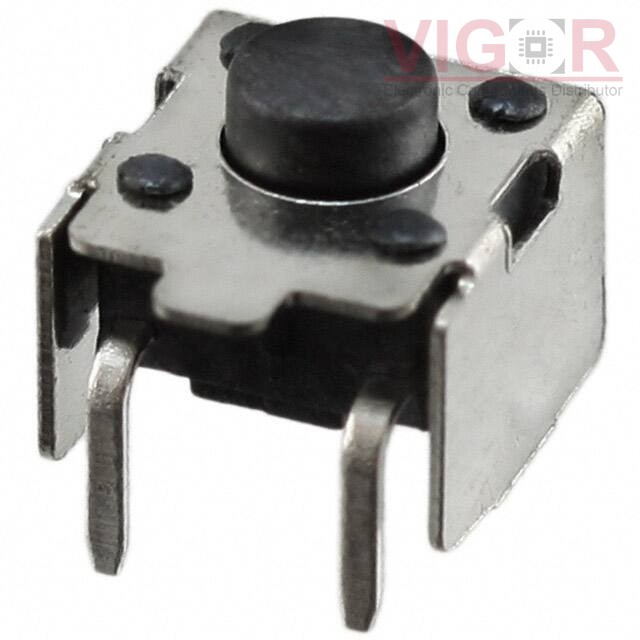

TL3320BF100Q

Part No :: TL3320BF100Q

Manufacturer: E-Switch

VIGOR # :: 4561017

Description: SWITCH TACTILE SPST-NO 0.05A 12V

Catalog: Tactile Switches

DataSheet: TL3320BF100Q PDF

Country of origin: -

Date code: -

TL3320BF100Q Specifications

Type	Description
Series:	TL3320
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.05A @ 12VDC
Actuator Type:	Standard
Mounting Type:	Surface Mount, Right Angle
Actuator Height off PCB, Vertical:	-
Actuator Length, Right Angle:	3.85mm
Actuator Orientation:	Side Actuated
Termination Style:	Gull Wing
Outline:	7.10mm x 6.35mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	100gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-20°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

May 23 - May 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of TL3320BF100Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
