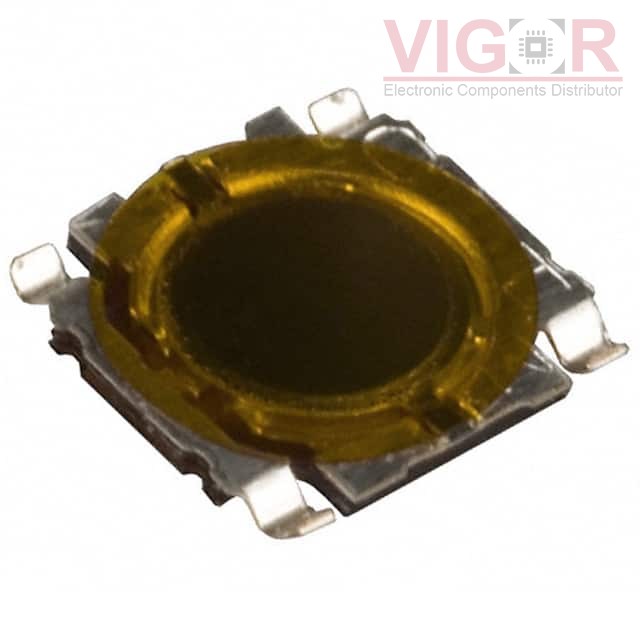

EVQ-PQHB55

Part No :: EVQ-PQHB55

Manufacturer: Panasonic

VIGOR # :: 4561213

Description: SWITCH TACTILE SPST-NO 0.02A 15V

Catalog: Tactile Switches

DataSheet: EVQ-PQHB55 PDF

Country of origin: -

Date code: -

EVQ-PQHB55 Specifications

Type	Description
Series:	EVQPQ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Snap Dome
Mounting Type:	Surface Mount
Actuator Height off PCB, Vertical:	0.55mm
Actuator Length, Right Angle:	-
Actuator Orientation:	Top Actuated
Termination Style:	SMD (SMT) Tab
Outline:	4.50mm x 4.50mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	160gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-20°C ~ 70°C
