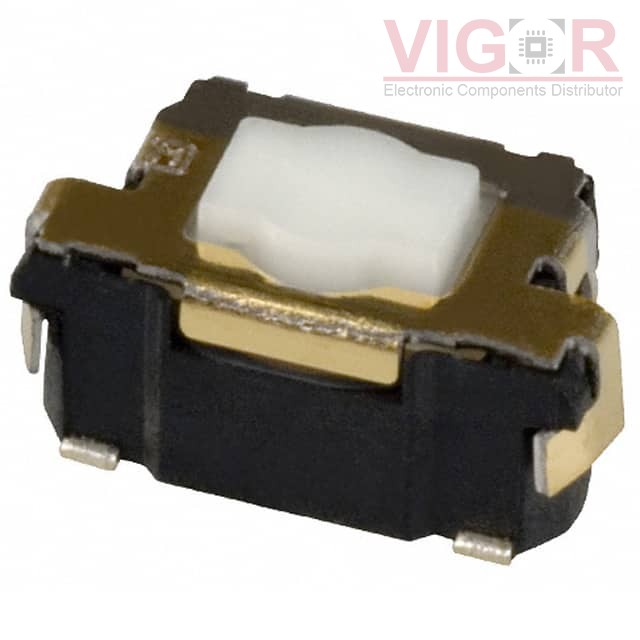

EVQ-P8603M

Part No :: EVQ-P8603M

Manufacturer: Panasonic

VIGOR # :: 4561229

Description: SWITCH TACTILE SPST-NO 0.02A 15V

Catalog: Tactile Switches

DataSheet: EVQ-P8603M PDF

Country of origin: -

Date code: -

EVQ-P8603M Specifications

Type	Description
Series:	EVQP8
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Circuit:	SPST-NO
Switch Function:	Off-Mom
Contact Rating @ Voltage:	0.02A @ 15VDC
Actuator Type:	Rectangular Button
Mounting Type:	Edge Mount, Right Angle
Actuator Height off PCB, Vertical:	-
Actuator Length, Right Angle:	2.10mm
Actuator Orientation:	Side Actuated
Termination Style:	SMD (SMT) Tab
Outline:	6.20mm x 2.55mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Operating Force:	350gf
Ingress Protection:	-
Features:	-
Operating Temperature:	-40°C ~ 85°C
