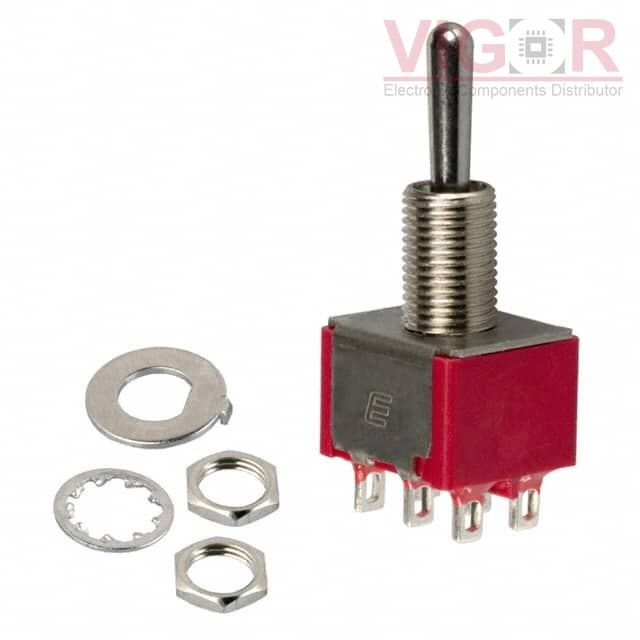

100DP3T1B1M1QEH

Part No :: 100DP3T1B1M1QEH

Manufacturer: E-Switch

Description: SWITCH TOGGLE DPDT 5A 120V

Catalog: Toggle Switches

DataSheet: 100DP3T1B1M1QEH PDF

Availability: 714 pieces

Current price of 100DP3T1B1M1QEH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

100DP3T1B1M1QEH Specifications

Type	Description
Series:	100
Package:	Bulk
Part Status:	Active
Mounting Type:	Panel Mount
Circuit:	DPDT
Switch Function:	On-Off-On
Current Rating (Amps):	5A (AC/DC)
Voltage Rating - AC:	120 V
Voltage Rating - DC:	28 V
Actuator Type:	Standard Round
Actuator Length:	10.41mm
Illumination:	Non-Illuminated
Illumination Type, Color:	-
Illumination Voltage (Nominal):	-
Termination Style:	Solder Lug
Panel Cutout Dimensions:	Circular - 6.35mm Dia
Bushing Thread:	1/4-40
Ingress Protection:	-
Features:	Epoxy Sealed Terminals
Operating Temperature:	-30°C ~ 85°C

Please confirm the specifications of the products when ordering.
