SP-69-B

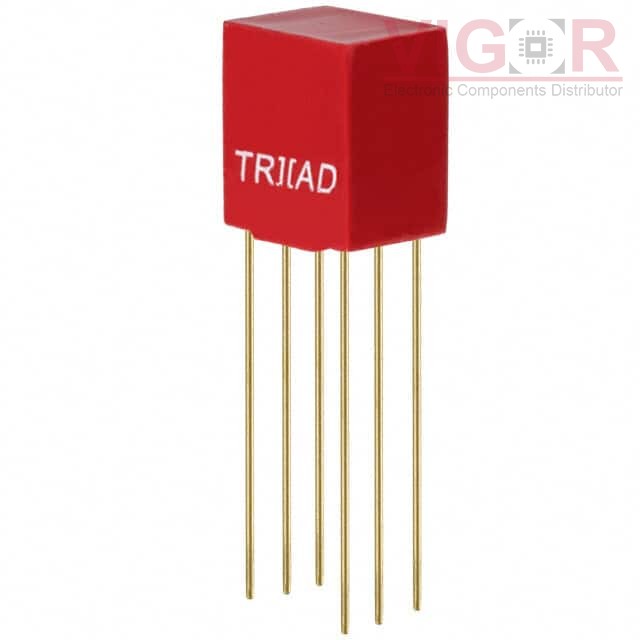

Image is for reference,
please contact us to get the real picture

Part No :: SP-69-B

Manufacturer: Triad Magnetics

Description: TRANS 600/ 600CT 150 SPLIT AUDIO

Catalog: Audio Transformers

DataSheet: SP-69-B PDF

Availability: 672 pieces

Unit Price: ~~$10.81290~~

Current price of SP-69-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP-69-B Specifications

Type	Description
Series:	Red-Spec
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	2.1:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	600, 150/150
DC Resistance (DCR) - Primary:	1kOhm
DC Resistance (DCR) - Secondary:	Parallel @ 565Ohm, Series @ 650Ohm
Transformer Type:	Audio Coupling
Frequency Range:	300Hz ~ 100kHz
Frequency Response:	±2dB
Voltage - Isolation:	1000VRMS @ 1 Second
Insertion Loss:	-
Return Loss:	-
Power Level:	50mW
Operating Temperature:	-40°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max):	0.465" (11.80mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
