T6003NLT

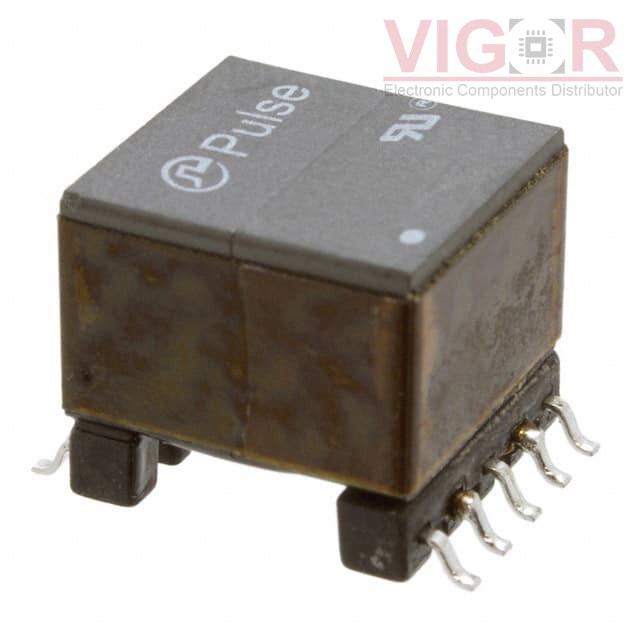

Product image
Product thumb
Part No :

T6003NLT

Manufacturer
PulseLarsen Antenna
VIGOR # :

1982647

Description
TRANSFORMER AUDIO 1:1 SMD
Catalog
Audio Transformers
DataSheet
T6003NLT PDF
Country of origin
-
Date code
-
ads
T6003NLT Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Turns Ratio - Primary:Secondary:1:1
Impedance - Primary (Ohms):600
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:55Ohm
DC Resistance (DCR) - Secondary:70Ohm
Transformer Type:General Purpose
Frequency Range:-
Frequency Response:-
Voltage - Isolation:1500Vrms
Insertion Loss:1dB @ 200Hz, 1dB @ 1kHz, 1dB @ 20kHz, 1.9dB @ 100kHz
Return Loss:20dB @ 200Hz, 1dB @ 1kHz, 25dB @ 10kHz
Power Level:-
Operating Temperature:-
Approval Agency:-
Mounting Type:Surface Mount
Size / Dimension:0.530" L x 0.516" W (13.46mm x 13.11mm)
Height - Seated (Max):0.485" (12.32mm)
Termination Style:Gull Wing
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 7722
Shipped from
HK warehouse
Expected Shipping Date
Jan 05 - Jan 09 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $6.50 $6.50
150 $4.16 $624.00
300 $4.03 $1 209.00
750 $3.90 $2 925.00
1050 $3.77 $3 958.50

Current price of T6003NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
