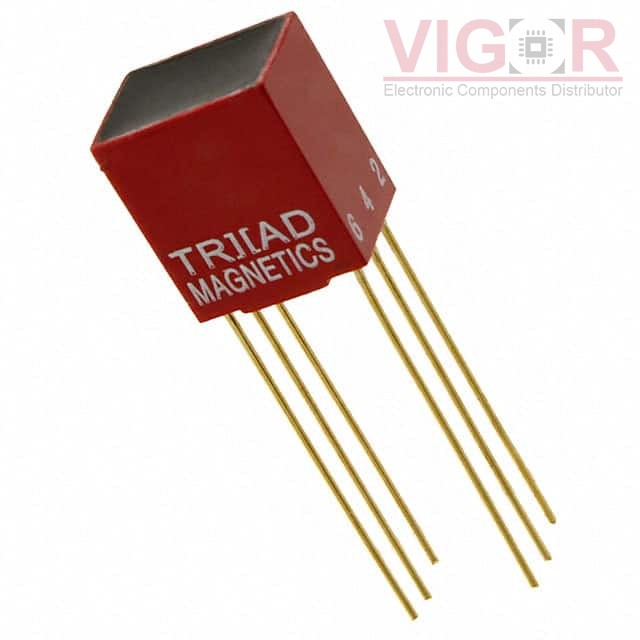

SP-13

Part No :: SP-13

Manufacturer: Triad Magnetics

Description: TRANSF 25K CT 20K CT/1K 800CT AU

Catalog: Audio Transformers

DataSheet: SP-13 PDF

Availability: 0 pieces

Unit Price: ~~$19.00000~~

Current price of SP-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SP-13 Specifications

Type	Description
Series:	Red-Spec
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	5:1
Impedance - Primary (Ohms):	25kCT, 20kCT
Impedance - Secondary (Ohms):	1kCT, 800CT
DC Resistance (DCR) - Primary:	1.7kOhm
DC Resistance (DCR) - Secondary:	115Ohm
Transformer Type:	Audio Coupling
Frequency Range:	300Hz ~ 100kHz
Frequency Response:	±2dB
Voltage - Isolation:	1000VRMS @ 1 Second
Insertion Loss:	-
Return Loss:	-
Power Level:	40mW
Operating Temperature:	-40°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.410" L x 0.310" W (10.41mm x 7.87mm)
Height - Seated (Max):	0.465" (11.80mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
