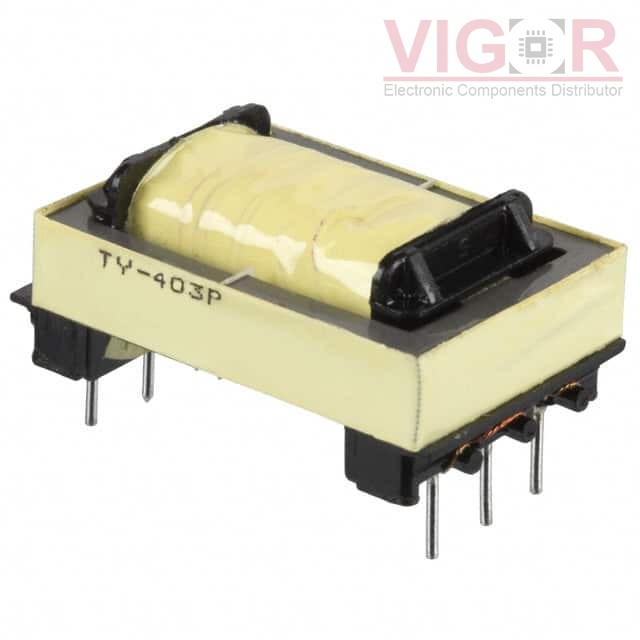

TY-403P

Part No :: TY-403P

Manufacturer: Triad Magnetics

Description: TRANSF 600 SPLIT SEC .90MA TEL

Catalog: Audio Transformers

DataSheet: TY-403P PDF

Availability: 585 pieces

Unit Price: ~~$5.38000~~

Current price of TY-403P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TY-403P Specifications

Type	Description
Series:	TY
Package:	Bulk
Part Status:	Active
Turns Ratio - Primary:Secondary:	1.81:1
Impedance - Primary (Ohms):	600
Impedance - Secondary (Ohms):	600
DC Resistance (DCR) - Primary:	80Ohm
DC Resistance (DCR) - Secondary:	56Ohm, 56Ohm
Transformer Type:	Data/Voice Coupling
Frequency Range:	300Hz ~ 3.5kHz
Frequency Response:	±0.5dB
Voltage - Isolation:	1500VAC
Insertion Loss:	1.75dB Typ
Return Loss:	15dB Typ
Power Level:	-45dB ~ 7dB
Operating Temperature:	-20°C ~ 85°C
Approval Agency:	-
Mounting Type:	Through Hole
Size / Dimension:	0.815" L x 1.250" W (20.70mm x 31.75mm)
Height - Seated (Max):	0.530" (13.46mm)
Termination Style:	PC Pin

Please confirm the specifications of the products when ordering.
